TRP型倍速輸送鏈
規格A

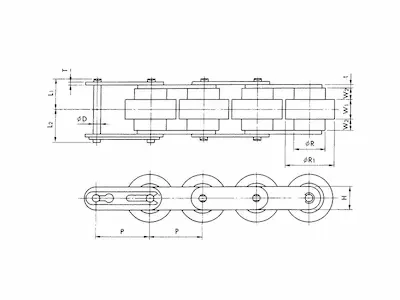

VRP型倍速鏈條 Triple-speed Chains
| 規格 | P | R | RI | W1 | W2 | t | T | H | D | LI | L2 | 重量/M |
| CHC2042VRP | 25.4 | 15.88 | 24.6 | 10.3 | 5.7 | 2 | 1.5 | 12 | 3.97 | 15.8 | 17 | |
| CHC2052VRP | 31.75 | 19.05 | 30.6 | 13 | 7.1 | 2.4 | 2 | 15 | 5.09 | 19.55 | 21.25 | |
| CHC2062VRP | 38.1 | 22.23 | 36.6 | 15.5 | 8.5 | 3.2 | 3.2 | 17.2 | 5.96 | 24.5 | 26.4 |
規格B

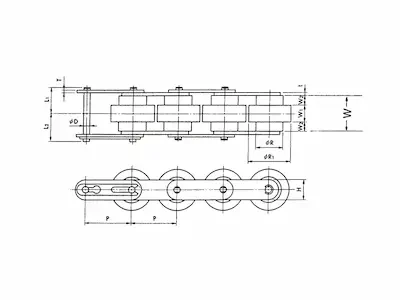

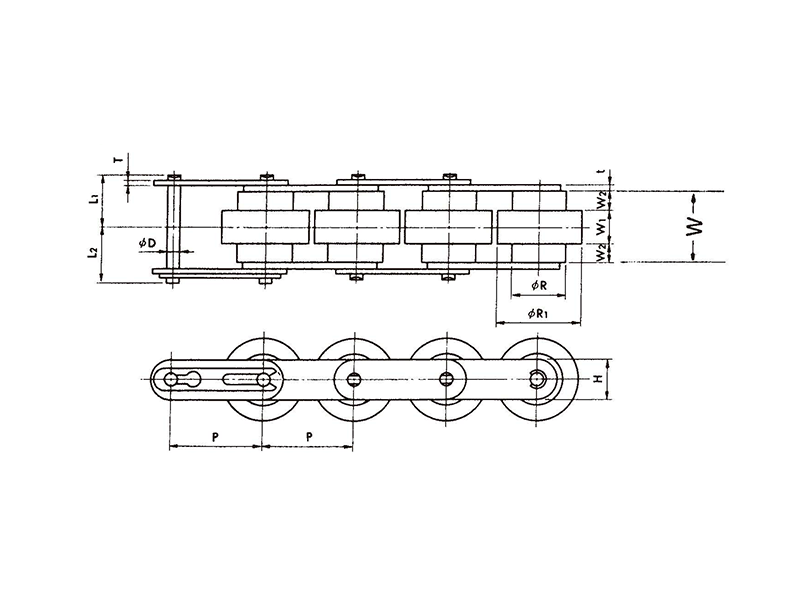

TRP型倍速鏈條 Triple-speed Chains
| 規格 | P | Rl | R | W | W1 | W2 | t | T | H | D | LI | L2 | 最大容許 | 容許荷重 |
| 張力 | ||||||||||||||
| CHC2040TRP | 25.4 | 24.5 | 12 | 30 | 16.2 | 6.1 | 2 | 1.5 | 9.7 | 3.97 | 21.4 | 19.6 | 200 | 40kg/m |
| CHC2060TRP | 38.1 | 36.5 | 18 | 39 | 21.4 | 8 | 4 | 3.2 | 15 | 5.96 | 30.4 | 28.4 | 640 | 100 |
