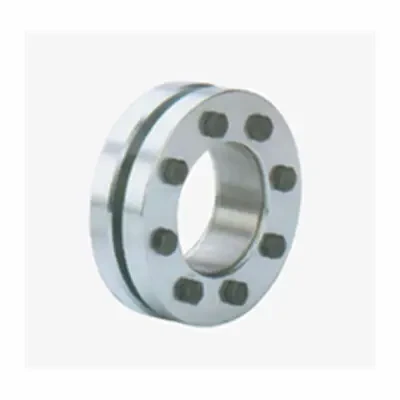

SSD束軸型

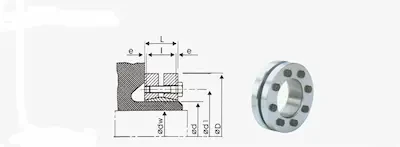

尺寸							傳遞的軸向力	傳遞扭矩	接觸面壓強	DIN912-12.9級鎖緊螺釘
									軸	數量	規格	鎖緊扭矩
d mm	D mm	dw mm	L1 mm	L2 mm	L mm	c(dw-d1) mm	Ft KN	Mt Nm	P N/mm	Qty	Size	Ts Nm
24	50	19 20 21	14	19.5	23	0.017	15.0 18.5 21.0	162 200 238	272.0	6	M5x18	4.9
30	60	24 25 26	16	21.5	25	0.017	15.7 23.7 26.7	265 323 361	221.0	7	M5x18	4.9
36	72	28 30 31	18	23.5	27.5	0.032	27.0 38.0 43.0	418 542 599	292.0	5	M6x20	11.8
44	80	32 35 36	20	25.5	29.5	0.032	44.0 49.0 54.0	589 741 817	301.0	7	M6x20	11.8
50	90	36 40 42	22	27.5	31.5	0.032	48.8 58.8 69.0	893 1102 1311	275.0	8	M6x25	11.8
55	100	42 45 48	23	30.5	34.5	0.032	48.0 61.7 77.0	1102 1444 1786	239.0	8	M6x25	11.8
62	110	48 50 52	23	30.5	34.5	0.048	69.0 80.9 900	1758 2090 2280	265.0	10	M6x25	11.8
68	115	50 55 60	23	30.5	34.5	0.048	71.2 80.9 95.7	1900 2375 2993	242.0	10	M6x25	11.8
75	138	55 60 65	25	32.5	37.8	0.048	94.4 111.0 126.0	2375 3040 3753	359.0	7	M8x30	29.4
80	145	60 65 70	25	32.5	37.8	0.048	99.3 115.0 130.0	3040 3705 4370	243.0	7	M8x30	29.4
90	155	65 70 75	30	39	44.3	0.048	141.0 160.0 178.0	4513 5700 6888	257.0	10	M8x35	29.4
100	170	70 75 80	34	44	49.3	0.048	163.0 182.0 202.0	6555 7125 8550	245.0	12	M8x35	29.4
110	185	75 80 85	39	50	56.4	0.048	185.0 207.0 221.0	6840 8550 12260	232.0	9	M10x40	57.8
125	215	85 90 95	42	54	60.4	0.069	240.0 262.0 285.0	10450 12350 14250	253.0	12	M10x40	57.8
140	230	95 100 105	46	60	68	0.069	308.0 331.0 357.0	14345 16720 19095	251.0	10	M12x45	98
155	265	105 110 115	50	64.5	72	0.069	366.0 392.0 417.0	20900 23750 26600	250.0	12	M12x50	98
165	290	115 120 125	56	71	81	0.069	513.0 544.0 564.0	29450 33250 37050	263.0	8	M16x55	245
175	300	125 130 135	56	71	81	0.079	576.0 630.0 666.0	34200 38950 45000	248.0	8	M16x55	250
