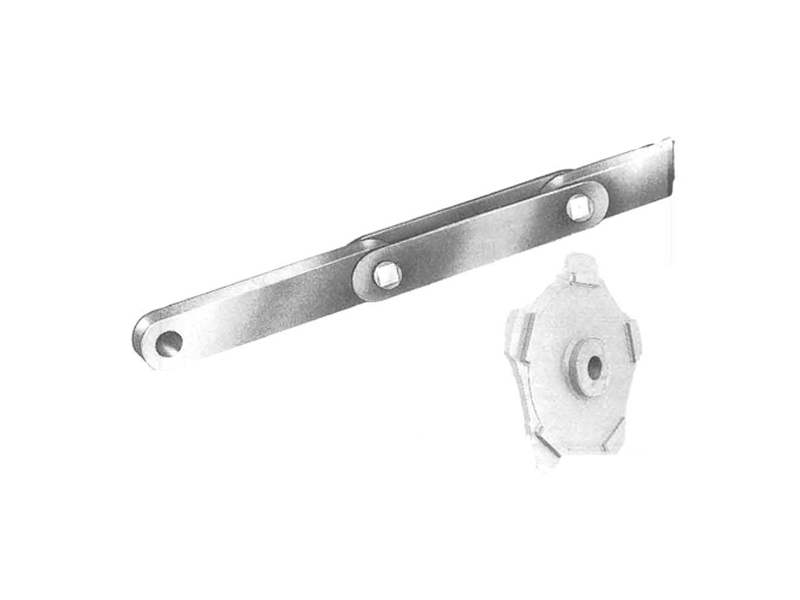

NF形滑輪鏈條
規格

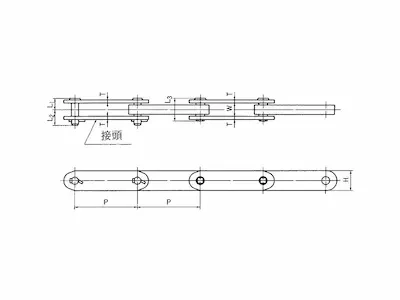

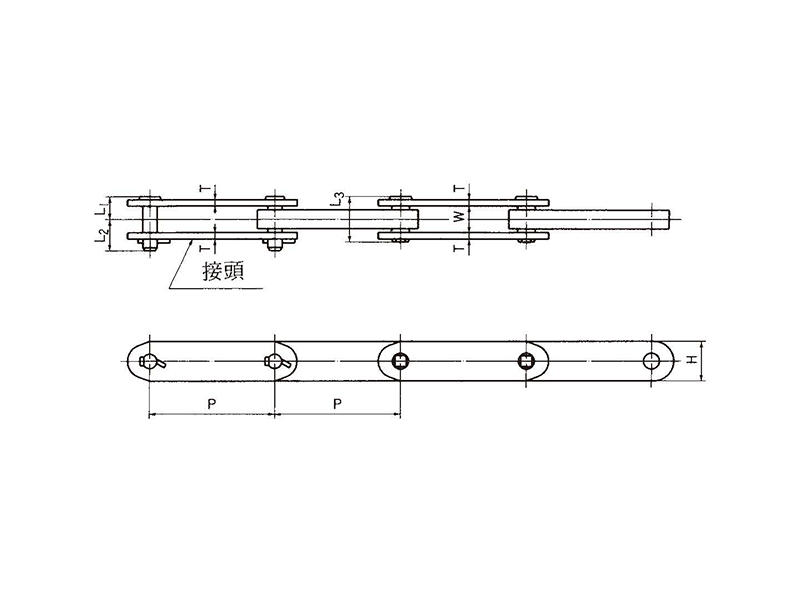

| 鏈條編號 | 節距 P | 鏈環寬 H | 梢 | 外鏈片 厚度 T | 外鏈片 内寬 W | 約重 (kg/m) | 平均拉力强度 | ||
| Li | 1_2 | L3 | |||||||
| CHC 30150-NF CHC 30200-NF | 150 200 | 38.1 | 24 | 32 | 49 | 7.9 | 23.3 | 7 6.6 | 309(31500) |
| CHC 40150-NF CHC 40200-NF | 150 200 | 44.5 | 25.5 | 33.5 | 52 | 7.9 | 26.5 | 9 8.5 | 397(40500) |
| CHC 56200-NF CHC 56250-NF | 250 300 | 54 | 29.5 | 40.5 | 60 | 9.5 | 29.5 | 12.3 12 | 554(56500) |
| CHC 63200-NF CHC 63250-NF | 250 300 | 57 | 30.5 | 41.5 | 62 | 9.5 | 31.5 | 13.7 13 | 618(63000) |
| CHC 70200-NF CHC 70250-NF | 250 300 | 63.5 | 31.5 | 42.5 | 64 | 9.5 | 33.5 | 16.2 15.5 | 721(73500) |
| CHC 90200-NF CHC 90250-NF | 250 300 | 72 | 34.5 | 45.5 | 70 | 10.5 | 38 | 21 20 | 907(92500) |
| CHC115250-NF CHC115300-NF | 250 300 | 76.2 | 38 | 49 | 77 | 12.7 | 40 | 25 24 | 1120(114000) |
| CHC140250-NF CHC140300-NF | 250 300 | 85 | 44 | 54 | 88 | 14 | 47.5 | 32 31 | 1400(143000) |
| CHC180300-NF CHC180350-NF | 300 350 | 95 | 38.5 | 58.5 | 97 | 16 | 52.5 | 39 37.8 | 1740(177500) |
| CHC210300-NF CHC210350-NF | 300 350 | 110 | 51.5 | 61.5 | 103 | 16 | 59 | 50 48.3 | 2150(219500) |
| CHC250300-NF CHC250350-NF | 300 350 | 112 | 58.5 | 68.5 | 117 | 19 | 66 | 58.8 56.7 | 2440(248500) |
| CHC280300-NF CHC280350-NF | 300 350 | 122 | 58.5 | 68.5 | 117 | 19 | 67 | 66 62.3 | 2720(277500) |
