DWS-C / DWSS -C 開縫型/夾緊式/撓性聯軸器

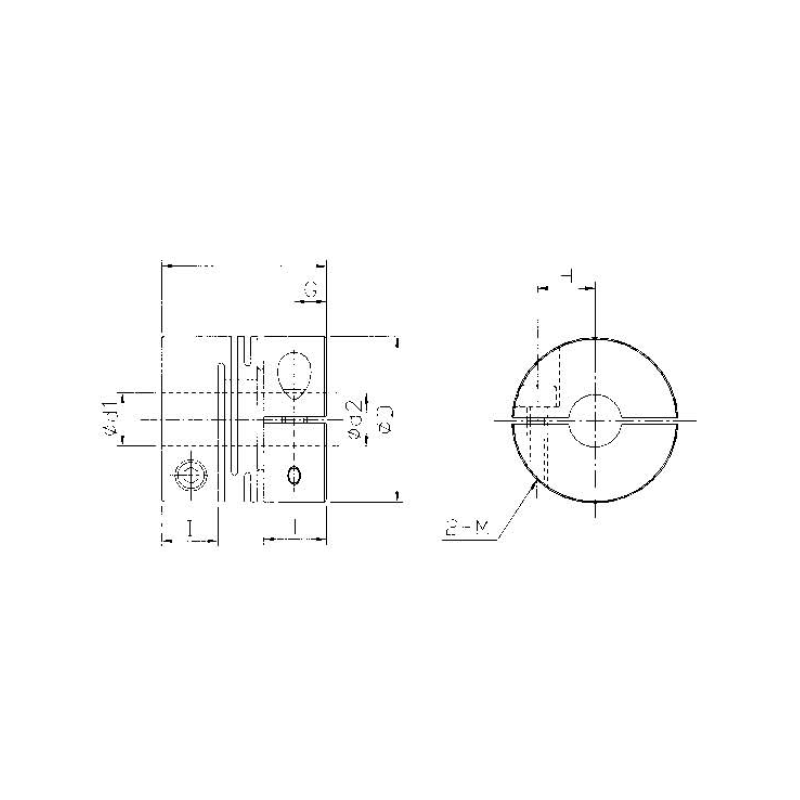

尺寸
| 型號 | D | I | L | G | H | M | d1xd2 標準孔徑 公差(H8) | Mass 質量 (g) | |
| Min | Max | ||||||||
| DWS-16C | 16 | 6.8 | 18 | 3.4 | 5 | M2.5 | 5 | 6 | 8 |
| DWS-20C | 20 | 7.65 | 20 | 3.8 | 6.5 | M3 | 5 | 8 | 13 |
| DWS-25C | 25 | 9.6 | 25 | 4.8 | 9 | M3 | 6 | 10 | 25 |
| DWS-32C | 32 | 12.6 | 32 | 6.3 | 11 | M4 | 6 | 14 | 53 |
| DWSS-16C | 16 | 6.8 | 18 | 3.4 | 5 | M2.5 | 5 | 6 | 21 |
| DWSS-20C | 20 | 7.65 | 20 | 3.8 | 65 | M2.5 | 5 | 8 | 36 |
| DWSS-25C | 25 | 9.6 | 25 | 4.8 | 9 | M3 | 6 | 10 | 69 |
| DWSS-32C | 32 | 12.6 | 32 | 6.3 | 11 | M5 | 8 | 14 | 150 |
性能
| 型號 | 一般扭力 (N.m) | 最大扭力 (N.m) | 最高回轉數 (min) | 慣性 (kg.m2) | 剛性靜扭力值 (N.m/rad) | 容許偏角 (o) | 容許軸向位差 (mm) |
| DWS-16C | 0.3 | 0.6 | 9500 | 2.9x10-7 | 110 | 1 | ±0.2 |
| DWS-20C | 0.5 | 1 | 7600 | 7.5x10-7 | 130 | 1 | ±0.2 |
| DWS-25C | 1 | 2 | 6100 | 2.3x10-6 | 350 | 1 | ±0.2 |
| DWS-32C | 2 | 4 | 4800 | 8.1x10-6 | 650 | 1 | ±0.2 |
| DWSS-16C | 0.5 | 1 | 9500 | 7.8x10-7 | 240 | 1 | ±0.1 |
| DWSS-20C | 1 | 2 | 7600 | 2.1x10-6 | 330 | 1 | ±0.1 |
| DWSS-25C | 2 | 4 | 6100 | 6.3x10-6 | 720 | 1 | ±0.2 |
| DWSS-32C | 3.5 | 7 | 4800 | 2.2x10-5 | 1300 | 1 | ±0.2 |
