DWS / DWSS 開縫型/止付螺絲固定式/撓性聯軸器

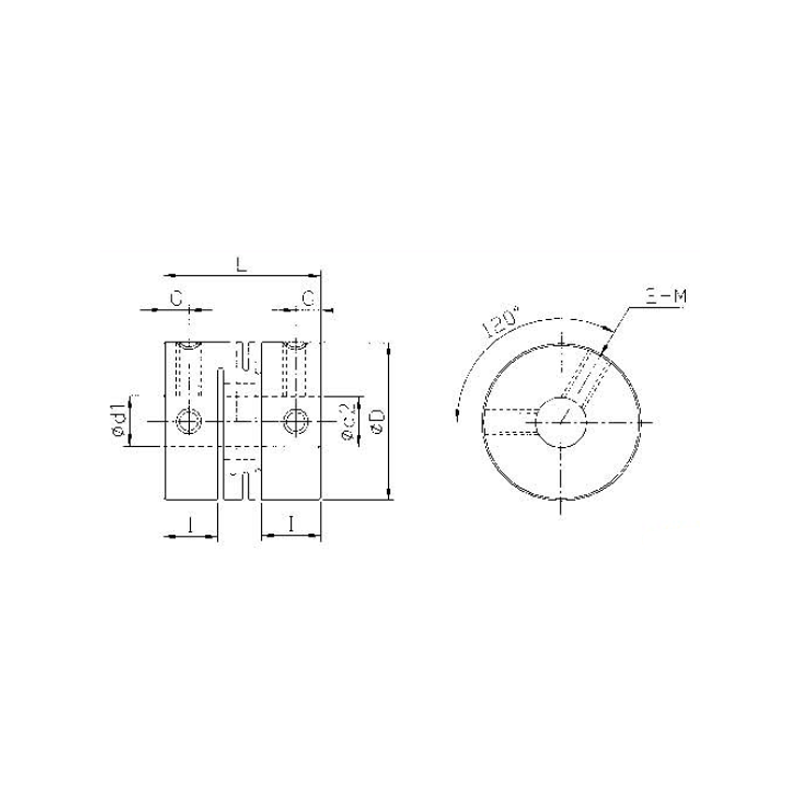

尺寸
| 型號 | D | I | L | G | M | d1xd2 標準孔徑 公差(H8) | Mass 質量 (g) | |
| Min | Max | |||||||
| DWS-16 | 16 | 6.8 | 18 | 3 | M3 | 5 | 6 | 7.4 |
| DWS-20 | 20 | 7.65 | 20 | 3 | M4 | 5 | 8 | 12 |
| DWS-25 | 25 | 9.6 | 25 | 4 | M4 | 6 | 10 | 25 |
| DWS-32 | 32 | 12.6 | 32 | 6 | M5 | 6 | 14 | 53 |
| DWSS-16 | 16 | 6.8 | 18 | 3 | M3 | 5 | 6 | 21 |
| DWSS-20 | 20 | 7.65 | 20 | 3 | M4 | 5 | 8 | 36 |
| DWSS-25 | 25 | 9.6 | 25 | 4 | M4 | 6 | 10 | 69 |
| DWSS-32 | 32 | 12.6 | 32 | 6 | M5 | 8 | 14 | 130 |
性能
| 型號 | 一般扭力 (N.m) | 最大扭力 (N.m) | 最高回轉數 (min) | 慣性 (kg.m2) | 剛性靜扭力值 (N.m/rad) | 容許偏角 (o) | 容許軸向位差 (mm) |
| DWS-16 | 0.3 | 0.6 | 24000 | 2.8x10-7 | 110 | 1 | ±0.2 |
| DWS-20 | 0.5 | 1 | 19000 | 7.5x10-7 | 130 | 1 | ±0.2 |
| DWS-25 | 1 | 2 | 15000 | 2.3x10-6 | 350 | 1 | ±0.2 |
| DWS-32 | 2 | 4 | 12000 | 8.0x10-6 | 650 | 1 | ±0.2 |
| DWSS-16 | 0.5 | 1 | 24000 | 7.2x10-7 | 240 | 1 | ±0.1 |
| DWSS-20 | 1 | 2 | 19000 | 2.0x10-6 | 330 | 1 | ±0.1 |
| DWSS-25 | 2 | 4 | 15000 | 6.1x10-6 | 720 | 1 | ±0.2 |
| DWSS-32 | 3.5 | 7 | 12000 | 2.1x10-5 | 1300 | 1 | ±0.2 |
