DOT-C 十字滑動型/夾緊式/撓性聯軸器

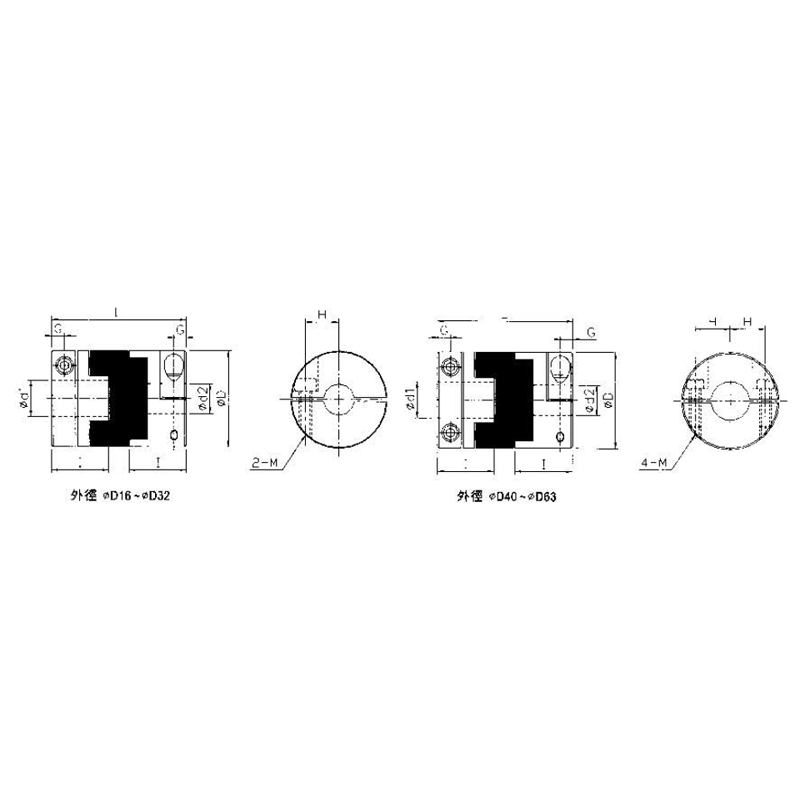

尺寸
| 型號 | D | I | L | G | H | M | d1xd2 標準孔徑 公差(H8) | Mass 質量 (g) | |
| Min | Max | ||||||||
| DCG-16C | 16 | 7.5 | 16 | 3.75 | 5 | M2.5 | 5 | 6 | 11 |
| DCG-20C | 20 | 9.5 | 20 | 4.75 | 6.5 | M3 | 6 | 8 | 20 |
| DCG-25C | 25 | 12 | 25 | 6 | 9 | M4 | 6 | 10 | 39 |
| DCG-32C | 32 | 15.5 | 32 | 7.75 | 11 | M4 | 8 | 14 | 71 |
| DCGS-16C | 16 | 7.5 | 16 | 3.75 | 5 | M2.5 | 5 | 6 | 31 |
| DCGS-20C | 20 | 9.5 | 20 | 4.75 | 6.5 | M3 | 6 | 8 | 53 |
| DCGS-25C | 25 | 12 | 25 | 6 | 9 | M4 | 6 | 10 | 85 |
| DCGS-32C | 32 | 5.5 | 32 | 7.75 | 11 | M4 | 8 | 14 | 190 |
性能
| 型號 | 一般扭力 (N.m) | 最大扭力 (N.m) | 最高回轉數 (min) | 慣性 (kgm2) |
| DCG-16C | 0.3 | 0.6 | 9500 | 3.0x10-7 |
| DCG-20C | 0.5 | 1 | 7600 | 8.7x10-7 |
| DCG-25C | 1 | 2 | 6100 | 2.7x10-6 |
| DCG-32C | 2 | 4 | 4800 | 7.1x10-6 |
| DCGS-16C | 0.3 | 0.6 | 9500 | 8.0x10-7 |
| DCGS-20C | 0.5 | 1 | 7600 | 2.4x10-6 |
| DCGS-25C | 1 | 2 | 6100 | 7.3x10-6 |
| DCGS-32C | 2 | 4 | 4800 | 2.5x10-5 |
