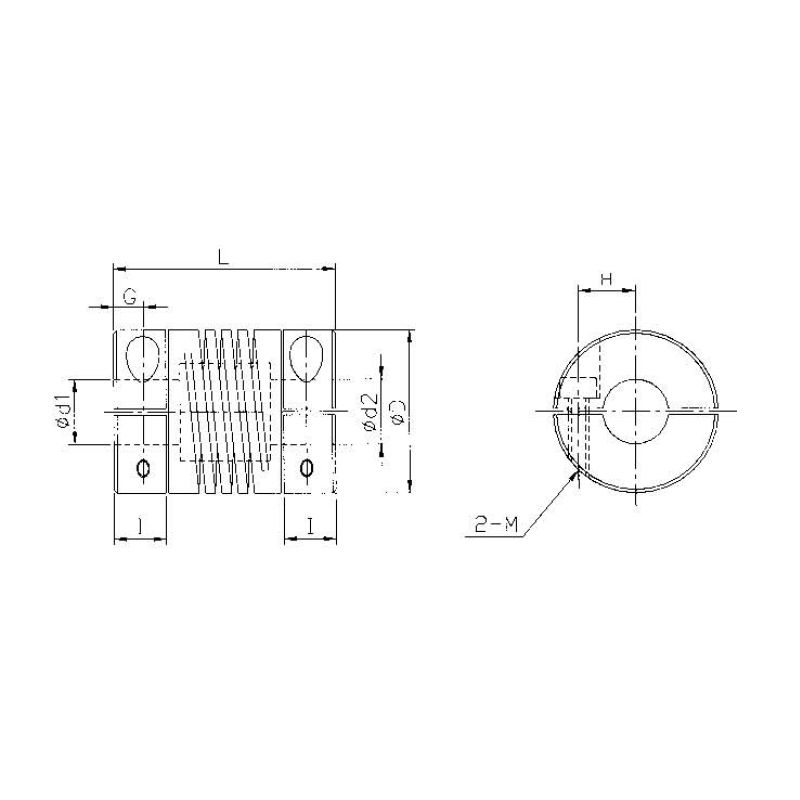

| 型號 | D | I | L | G | H | M | d1xd2 標準孔徑 公差(H8) | Mass 質量 (g) | |
| Min | Max | ||||||||
| DMT-16C | 16 | 6.2 | 23 | 2.5 | 5.0 | M2.5 | 4 | 6.35 | 10 |
| DMT-19C | 19 | 6.5 | 23 | 3.0 | 5.6 | M3 | 4 | 8 | 13 |
| DMT-20C | 20 | 7.5 | 26 | 3.0 | 5.7 | M3 | 6 | 8 | 13 |
| DMT-25C | 25 | 8.0 | 31 | 4.0 | 7.5 | M3 | 6 | 12 | 31 |
| 型號 | 一般扭力 (N.m) | 最大扭力 (N.m) | 最高回轉數 (min) | 容許偏心 (mm) | 容許偏角 (o) | 容許軸向位差 (mm) |
| DMT-16C | 0.5 | 1.0 | 25000 | 0.25 | 5 | ±0.25 |
| DMT-19C | 1.0 | 2.0 | 25000 | 0.25 | 5 | ±0.25 |
| DMT-20C | 1.0 | 2.0 | 25000 | 0.25 | 5 | ±0.25 |
| DMT-25C | 1.6 | 3.2 | 25000 | 0.25 | 5 | ±0.25 |
