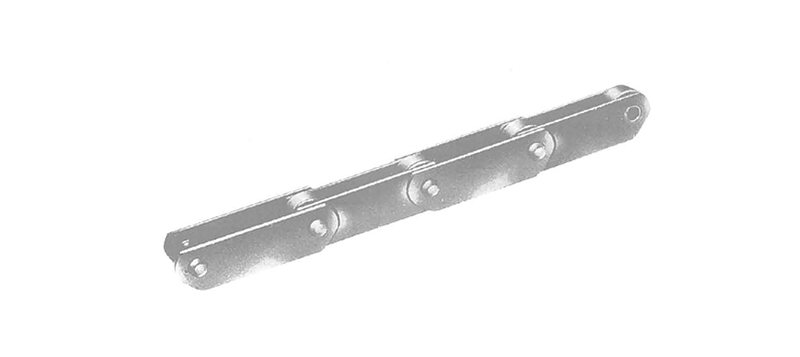

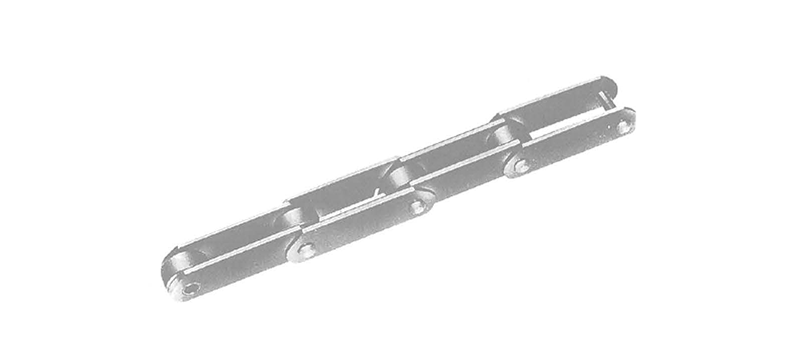

CHD型加固形輸送鏈

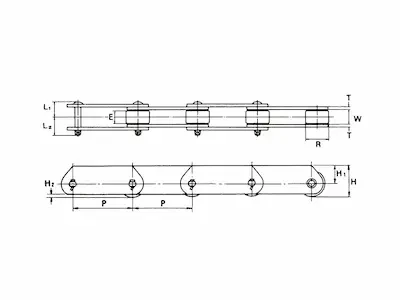

規格
| 編號 | P | 内 内側 W | 高H | 約重 (kgf/m) | 平均斷 裂强度 | ||||||||
| 直徑 R | 滚子寬 E | 高 | 厚T | L1 | L2 | ||||||||
| H1 | H2 | 普通 | 强力 | ||||||||||
| CHD03075R CHD03100R | 75 100 | 31.8 | 15.5 | 16.1 | 36.9 | 21 | 4.9 | 3.2 | 18 | 20 | 3.2 2.8 | 3,000 | 7,100 |
| CHD05100R CHD05150R | 100 150 | 40 | 19 | 22 | 44 | 24 | 4 | 4.5 | 25 | 28.5 | 5.9 4.9 | 7,000 | 14,500 |
| CHD08150R | 150 | 44.5 | 23 | 27 | 50.3 | 28 | 8 | 6.3 | 31 | 34.5 | 7 | &000 | 14,500 |
| CHD10150R CHD10200R | 150 200 | 50.8 | 27 | 30 | 57.4 | 32 | 6.4 | 6.3 | 33 | 36 | 9.7 8.5 | 11,500 | 23,000 |
| CHD 6205R | 152.4 | 57.2 | 32 | 37.1 | 63.6 | 35 | 6.1 | 7.9 | 40.5 | 43 | 14 | 19,000 | 28,500 |
| CHD12200R CHD12250R | 200 250 | 65 | 32 | 37.1 | 73.5 | 41 | 10 | 7.9 | 40.5 | 43 | 14.9 13.5 | 19,000 | 28,500 |
| CHE17250R CHE17300R | 250 300 | 80 | 44 | 51.4 | 90 | 50 | 13.8 | 9.5 | 51.5 | 58 | 22.5 21.5 | 25,000 | 39,500 |
| CHD26300R | 300 | 85※ | 50 | 57.2 | 95.5 | 53 | 10.5 | 9.5 | 55.5 | 61 | 24.3 | 32,000 | 53,000 |
| CHD36300R CHD36400R | 300 400 | 100※ | 56 | 66.7 | 112 | 62 | 12 | 12.7 | 68 | 78 | 39 34.2 | 48,500 | 69,500 |
| CHD52450R | 450 | 110※ | 56 | 77 | 125 | 70 | 17 | 16 | 82 | 90 | 46 | 51,000 | 105,000 |
