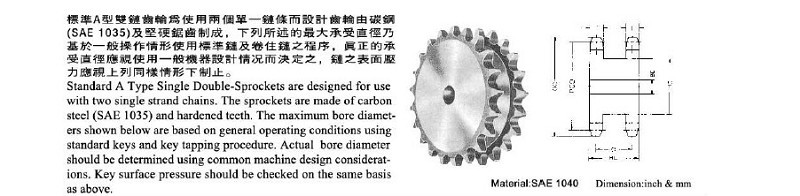

CHC雙排H型鏈輪
產品規格
No
of
TeethOutside Dia
(OD)Pitch Dia
(OD)C Bore(BD) Hub Approx
Weight
(kg)Stock Max HD HL inch mm inch mm inch mm inch mm inch mm inch mm inch mm 40SD 12 2.17 55 1.932 49.07 1.094 27.8 0.43 11 0.67 17 1.339 34 1.378 35 0.33 13 2.33 59 2.87 53.07 0.55 14 0.79 20 1.496 38 0.40 14 2.49 63 2.247 57.07 0.55 14 0.94 24 1.654 42 0.49 15 2.65 67 2.405 61.08 0.55 14 0.98 25 1.811 46 0.57 16 2.81 71 2.563 65.10 0.55 14 1.10 28 1.969 50 0.66 17 2.98 76 2.721 69.12 0.55 14 1.26 32 2.126 54 0.76 18 3.14 80 2.879 73.14 0.55 14 1.38 35 2.323 59 0.89 19 3.30 84 3.038 77.16 0.55 14 1.46 37 2.480 63 1.00 20 3.46 88 3.196 81.18 0.59 15 1.47 40 2.638 67 1.14 21 3.62 92 3.355 85.21 0.59 15 1.69 43 2.795 71 1.23 50SD 12 2.72 69 2.415 61.34 1.232 31.3 0.59 15 0.94 24 1.693 43 1.575 40 0.63 13 2.91 74 2.612 66.34 0.59 15 0.98 25 1.890 48 0.75 14 3.11 79 2.809 71.34 0.59 15 1.18 30 2.087 53 0.90 15 3.31 84 3.006 76.35 0.59 15 1.38 35 2.283 58 1.04 16 3.50 89 3.204 81.37 0.59 15 1.46 37 2.480 63 1.22 17 3.70 94 3.401 86.39 0.59 15 1.65 42 2.677 68 1.41 18 3.94 100 3.599 91.42 0.59 15 1.73 44 2.874 73 1.61 19 4.13 105 3.797 96.45 0.59 15 1.81 46 3.110 79 1.80 20 4.33 110 3.995 101.48 0.59 15 1.97 50 3.307 84 1.95 21 4.53 115 4.193 106.51 0.59 15 2.13 54 3.504 89 2.27 60SD 12 3.25 83 2.898 73.60 1.508 38.3 0.59 15 1.10 28 2.008 51 1.969 50 1.14 13 3.49 89 3.134 79.60 0.59 15 1.38 35 2.244 57 1.39 14 3.74 95 3.371 85.61 0.67 17 1.46 37 2.520 64 1.63 15 3.98 101 3.607 91.62 0.67 17 1.69 43 2.756 70 1.93 16 4.22 107 3.844 97.65 0.67 17 1.81 46 2.992 76 2.20 17 4.46 113 4.082 103.67 0.67 17 1.97 50 3.228 82 2.56 18 4.70 119 4.319 109.71 0.67 17 2.09 53 3.465 88 2.90 19 4.95 126 4.557 115.74 0.67 17 2.17 55 3.701 94 3.26 20 5.19 132 4.794 121.78 0.67 17 2.28 58 3.937 100 3.70 21 5.43 138 5.032 127.82 0.67 17 2.48 63 4.213 107 4.30 80SD 12 4.33 110 3.864 98.14 1.787 45.4 0.83 21 1.65 42 2.716 69 2.362 60 2.52 13 4.66 113 4.178 106.14 0.83 21 1.81 46 3.031 77 3.04 14 4.98 127 4.494 114.15 0.83 21 1.97 50 3.346 85 3.60 15 5.31 135 4.810 122.17 0.83 21 2.17 55 3.661 93 4.16 16 5.63 143 5.126 130.20 0.83 21 2.28 58 4.016 102 4.89 17 5.95 151 5.442 148.23 0.83 21 2.56 65 4.331 110 5.61 18 6.27 159 5.759 156.27 0.83 21 2.68 68 4.646 118 6.36 19 6.59 167 6.076 164.32 0.87 22 2.95 75 4.961 126 7.13 20 6.91 176 6.393 162.37 0.87 22 3.23 82 5.276 134 8.03 21 7.24 184 6.710 170.42 0.87 22 3.54 90 5.91 142 8.88 100SD 12 5.42 138 4.830 122.67 2.063 52.4 0.87 22 1.97 50 3.386 86 2.756 70 4.68 13 5.82 148 5.223 132.67 0.87 22 2.05 52 3.780 96 5.10 14 6.23 158 5.618 142.68 0.87 22 2.44 62 4.213 107 6.65 15 6.63 168 6.012 152.71 0.87 22 2.68 68 4.606 117 7.89 16 7.03 179 6.407 162.74 0.87 22 2.95 75 5.000 127 9.00 17 7.44 189 6.803 172.79 0.87 22 3.35 85 5.000 127 10.30 18 7.84 199 7.199 182.84 0.87 22 3.74 95 5.827 148 11.80 19 8.24 209 7.594 192.90 1.02 26 3.94 100 6.220 158 13.20 20 8.64 220 7.990 202.96 1.02 26 4.33 110 6.614 168 14.70 21 9.04 230 8.387 213.03 1.02 26 4.72 120 6.693 170 16.40
