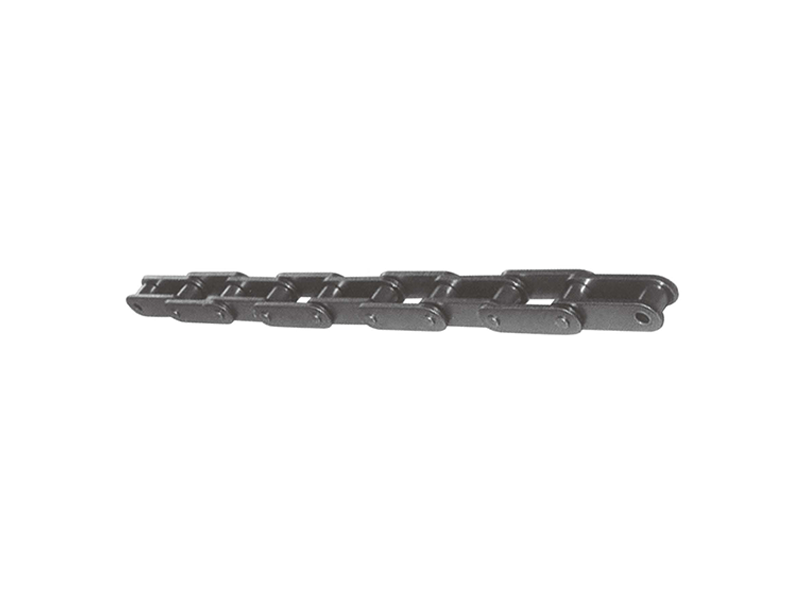

CA型鋼制農機鏈

產品型號： CA550

描述

鏈號Chain NO.	節距Pitch	滚子直徑Roller Diameter	内節内寬 Width Between Inner Plates	銷軸直徑Pin Diameter	銷軸長度 Pin Length		内鏈板高度Inner Plate Depth	鏈板厚度 Plate Thickness		極限拉伸載荷Ultimate Tensile Strength	每米重量 Weight Per Meter
	P	D rmax	W min	D max	L max	L cmax	H max	T1 max	T2 max	min	Kg/m
	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	Kg/m
CA550	41.4	16.7	19.81	7.16	35.3	38.2	19.05	2.7	2.7	39.8	1.94
CA555	41.4	16.86	12.5	7.19	30.35	33.48	20.17	3.18	3.18	39.8	1.72
CA557	41.4	17.78	20.14	7.94	37.6	40	2310	3.18	3.18	55.8	2.6
CA620	42.01	17.68	25.07	7.16	41.5	45	19.05	3.15	3.15	39.8	2.35
384V	38.4	15.88	18	6.92	35.1	38.4	17.2	3	3	33.8	1.83
38.4VB	38.4	15.88	19	8.28	35.8	38.8	20.5	3	3	50.8	2.17
CA2060H	38.1	11.91	12.7	5.94	28.8	31.7	18	3.25	3.25	31.1	1.45
CA650H	41.4	16.7	19.81	7.16	36.18	39	19.05	3	3	39.8	2.24
