B系列短節距滾子鏈

產品型號： 05B-1

描述

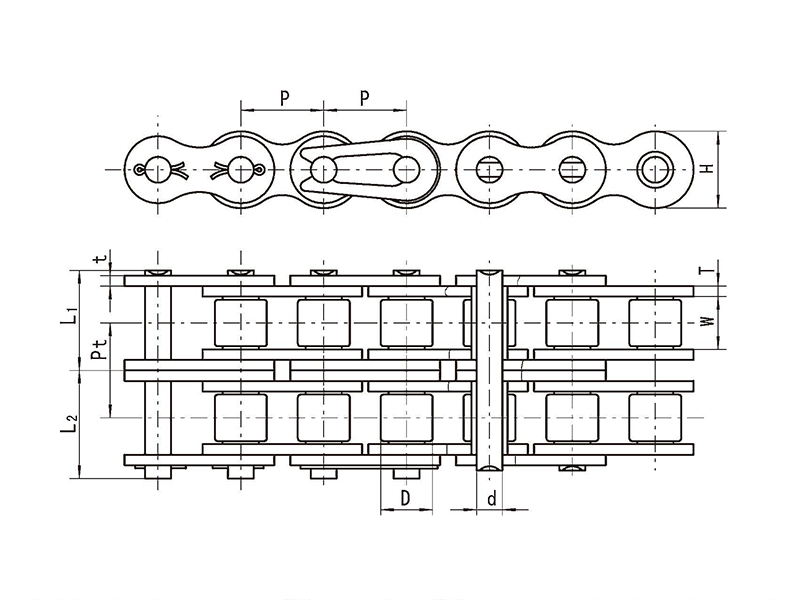

規格A

DIN/ISO 鍵號 Chain No.	節距 Pitch P mm	内節内寬 Width betwee ninner plates W (min) mm	滚子外徑 Roller diameter D (max) mm	銷軸 Pin			鏈板 Plate		最小抗拉强度 Ultimate tensile strength Q min kN	平均拉伸强度 Average tensile strength Q 0 kN	每米净重 Weight per meter q kg/m
DIN/ISO 鍵號 Chain No.	節距 Pitch P mm	内節内寬 Width betwee ninner plates W (min) mm	滚子外徑 Roller diameter D (max) mm	d mm	L1 mm	L2 mm	H mm	t/T mm	最小抗拉强度 Ultimate tensile strength Q min kN	平均拉伸强度 Average tensile strength Q 0 kN	每米净重 Weight per meter q kg/m
05B-1	8	3	5	2.31	3.9	4.8	7.1	0.8	4.4	5.9	0.11
06B-1	9.525	5.72	6.35	3.28	6.27	7.23	8.2	1.3	8.9	10.4	0.41
08B-1	12.7	7.75	8.51	4.45	8.5	9.9	11.8	1.6	17.8	19.4	0.69
10B-1	15.875	9.65	10.16	5.08	9.6	10.9	14.6	1.7	22.2	27.5	0.93
12B-1	19.05	11.68	12.07	5.72	11	12.4	16	1.85	28.9	32.2	1.15
16B-1	25.4	17.02	15.88	8.28	17.65	19.05	20.9	3.2/4	60	72.8	2.71
20B-1	31.75	19.56	19.05	10.19	20.2	23.8	26	3.5/4.5	95	106.7	3.7
24B-1	38.1	25.4	25.4	14.63	26.65	31.05	33	48/6	160	178	7.1
28B-1	44.45	30.99	27.94	15.9	32.55	36.45	36.7	6/7.5	200	222	8.5
32B-1	50.8	30.99	29.21	17.81	32.8	37.2	41.9	6/7	250	277.5	10.25
48B-1	76.2	45.72	48.26	29.24	19.55	58.65	63.5	9.7/11.8	400	621.6	25
72B-1	114.3	68.58	72.39	44.48	74.15	82.25	103.63	16/17	898.5	1550	63.55

可跟據客户要求生産鍍金、鍍鎳、鍍路及多排鏈條。

規格B

DIN/ISO 鏈號 Chain No.	節距 Pitch P mm	内節内寬 Width between inner plates W (min) mm	滚子外徑 Roller diameter D (max) mm	銷軸 Pin			鏈板 Plate		排距 Transverse pitch Pt mm	最小抗拉强度 Ultimate tensile strength Qmin kN	平均拉伸强度 Average tensile strength Qo kN	每米净重 Weight per meter q kg/m
DIN/ISO 鏈號 Chain No.	節距 Pitch P mm	内節内寬 Width between inner plates W (min) mm	滚子外徑 Roller diameter D (max) mm	d mm	L1 mm	L2 mm	H mm	t/T mm	排距 Transverse pitch Pt mm	最小抗拉强度 Ultimate tensile strength Qmin kN	平均拉伸强度 Average tensile strength Qo kN	每米净重 Weight per meter q kg/m
05B-2	8	3	5	2.31	6.75	7.59	7.1	0.8	5.64	7.8	10.2	0.38
06B-2	9.525	5.72	6.35	3.28	11.4	12.4	8.2	1.3	10.24	16.9	18.7	0.74
08B-2	12.7	7.75	8.51	4.45	15.5	16.9	11.8	1.6	13.92	32	38.7	1.47
10B-2	15.875	9.65	10.16	5.08	17.9	19.3	14.6	1.7	16.59	44.5	56.2	1.88
12B-2	19.05	11.68	12.07	5.72	20.75	22.15	16	1.85	19.46	57.8	66.1	2.42
16B-2	25.4	17.02	15.88	8.28	33.6	35	20.9	324	31.88	106	133	5.54
20B-2	31.75	19.56	19.05	10.19	38.45	42.05	26	3.64.5	36.45	170	211.2	7.71
24B-2	38.1	25.4	25.4	14.63	50.85	55.25	33	4.8/6	48.36	280	319.2	14.09
28B-2	44.45	30.99	27.94	15.9	62.35	66.15	36.7	67.5	59.56	360	106.8	18.49
32B-2	50.8	30.99	29.21	17.81	62.05	66.45	41.9	67	58.55	450	508.5	19.59
