A系列短節距滾子鏈

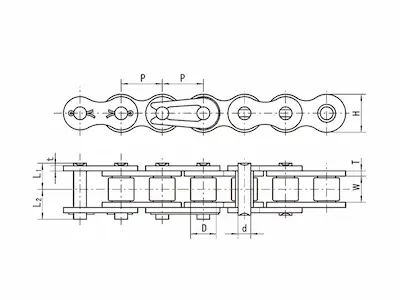

規格A
.png)
| DIN/ISO 鏈號 Chain No. | ANSI 鏈號 Chain No. | 節距 Pitch P mm | 内節内寬 Width between inner plates W (min) mm | 滚子 外徑 Roller diameter D (max) mm | 銷軸 Pin | 鏈板 Plate | 最小抗 拉强度 Ultimate tensile strength Qmin kN | 平均拉 伸强度 Average tensile strength Qg kN | 每米 净重 Weight per meter qkg/m | |||
| d mm | L1 mm | L2 mm | L2 mm | L2 mm | ||||||||
| *04C-1 | *25-1 | 6.35 | 3.18 | 3.3 | 2.31 | 3.9 | 4.8 | 6 | 0.8 | 3.5 | 4.6 | 0.14 |
| *06C-1 | *35-1 | 9.525 | 4.77 | 5.08 | 3.58 | 6 | 7.2 | 9 | 1.3 | 7.9 | 10.6 | 0.35 |
| 08 A-1 | 40-1 | 12.7 | 7.85 | 7.77 | 3.96 | 8.3 | 9.6 | 12 | 1.5 | 14.1 | 18 | 0.66 |
| 10A-1 | 50-1 | 15.875 | 9.4 | 10.16 | 5.08 | 10.25 | 11.85 | 15.09 | 2.03 | 22.2 | 31 | 1.05 |
| 12A-1 | 60-1 | 19.05 | 12.57 | 11.91 | 5.94 | 12.65 | 14.35 | 18 | 2.42 | 31.8 | 42 | 1.56 |
| 16A-1 | 80-1 | 25.4 | 15.75 | 15.88 | 7.92 | 16.2 | 17.9 | 24 | 3.25 | 56.7 | 70.2 | 2.67 |
| 20A-1 | 100-1 | 31.75 | 18.9 | 19.05 | 9.52 | 19.8 | 23.3 | 30 | 4 | 88.5 | 115 | 4.04 |
| 24A-1 | 120-1 | 38.1 | 25.22 | 22.23 | 11.1 | 25 | 28.3 | 35.7 | 4.8 | 127 | 170 | 5.94 |
| 28A-1 | 140-1 | 44.45 | 25.22 | 25.4 | 12.7 | 26.9 | 30.9 | 41 | 5 | 172 | 213 | 7.5 |
| 32 A-1 | 160-1 | 50.8 | 31.55 | 28.58 | 14.27 | 32.05 | 35.75 | 47.8 | 6.4 | 226.8 | 290 | 10.2 |
| 36A-1 | 180-1 | 57.15 | 35.48 | 35.71 | 17.46 | 36.35 | 40.75 | 53.6 | 7.2 | 280.2 | 340 | 13.95 |
| 40A-1 | 200-1 | 63.5 | 37.85 | 39.68 | 19.84 | 39.55 | 43.85 | 60 | 8 | 353 | 480 | 16.86 |
| 48 A-1 | 240-1 | 76.2 | 47.35 | 47.63 | 23.81 | 47.6 | 52.4 | 72.39 | 9.5 | 510 | 620 | 24.25 |
- 鏈條爲套筒鏈，無滚子
- Chains: Bushing chains with no roller
- 可跟據客户要求生産鍍金、鍍鎳、鍍鉛及多排鏈條

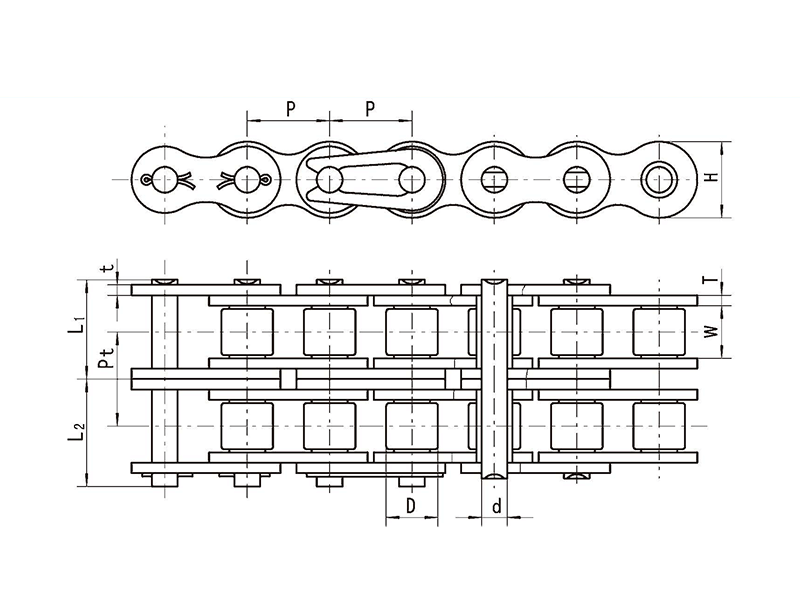

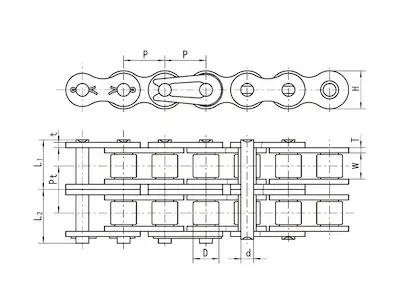

規格B
| DIN/ISO 鏈號 Chain No. | ANSI 鏈號 Chain No. | 節距 Pitch P mm | 内節内寬 Width between inner plates W (min) mm | 滚子 外徑 Roller diameter D (max) mm | 銷軸 Pin | 鏈板 Plate | 排距 Transverse pitch Pt mm | 最小抗 拉强度 Ultimate tensile strength Qmin kN | 平均拉 伸强度 Average tensile strength Qo kN | 每米 净重 Weight per meter q kg/m | |||
| d mm | L1 mm | L2 mm | H mm | t/T mm | |||||||||
| *04C-2 | *25-2 | 6.35 | 3.1 | 3.3 | 2.31 | 7.1 | 7.9 | 5.9 | 0.75 | 6.4 | 7 | 8.6 | 0.28 |
| *06C-2 | *35-2 | 9.525 | 4.68 | 5.08 | 3.58 | 11.1 | 12.3 | 9 | 1.27 | 10.13 | 15.8 | 20 | 0.69 |
| 08A-2 | 40-2 | 12.7 | 7.85 | 7.92 | 3.96 | 15.5 | 16.7 | 12 | 1.52 | 14.38 | 27.6 | 34.5 | 1.3 |
| 10A-2 | 50-2 | 15.875 | 9.4 | 10.16 | 5.08 | 19.3 | 20.7 | 15 | 2 | 18.11 | 43.6 | 59.5 | 2.08 |
| 12A-2 | 60-2 | 19.05 | 12.57 | 11.91 | 5.94 | 24.05 | 25.95 | 18 | 2.4 | 22.78 | 62.3 | 80.6 | 3.09 |
| 16A-2 | 80-2 | 25.4 | 15.75 | 15.88 | 7.92 | 30.75 | 33.15 | 23.5 | 3.2 | 29.29 | 111.2 | 134.8 | 5.29 |
| 20A-2 | 100-2 | 31.75 | 18.9 | 19.05 | 9.52 | 37.7 | 41.1 | 30 | 4 | 35.76 | 173.5 | 224.3 | 8.01 |
| 24A-2 | 120-2 | 38.1 | 25.22 | 22.23 | 11.1 | 47.75 | 51.05 | 35.8 | 4.9 | 45.44 | 249.1 | 326.4 | 11.84 |
| 28A-2 | 140-2 | 44.45 | 25.22 | 25.4 | 12.7 | 51.35 | 55.35 | 41.5 | 5.6 | 48.87 | 338.1 | 409 | 14.89 |
| 32A-2 | 160-2 | 50.8 | 31.55 | 28.58 | 14.27 | 61.35 | 65.05 | 48 | 6.4 | 58.55 | 444.8 | 556.8 | 20.26 |
| 36A-2 | 180-2 | 57.15 | 35.48 | 35.71 | 17.46 | 69.25 | 73.65 | 54 | 7.2 | 65.84 | 560.5 | 652.8 | 27.62 |
| 40A-2 | 200-2 | 63.5 | 37.85 | 39.68 | 19.84 | 75.35 | 79.65 | 59.6 | 8 | 71.55 | 693.9 | 921.6 | 33.64 |
| 48A-2 | 240-2 | 76.2 | 47.35 | 47.63 | 23.81 | 91.5 | 96.3 | 72.1 | 72.39 | 87.83 | 1000.8 | 1190.4 | 48.31 |
- 鏈條爲套筒鏈，無滚子
- Chains: Bushi ng chai ns with no roller
