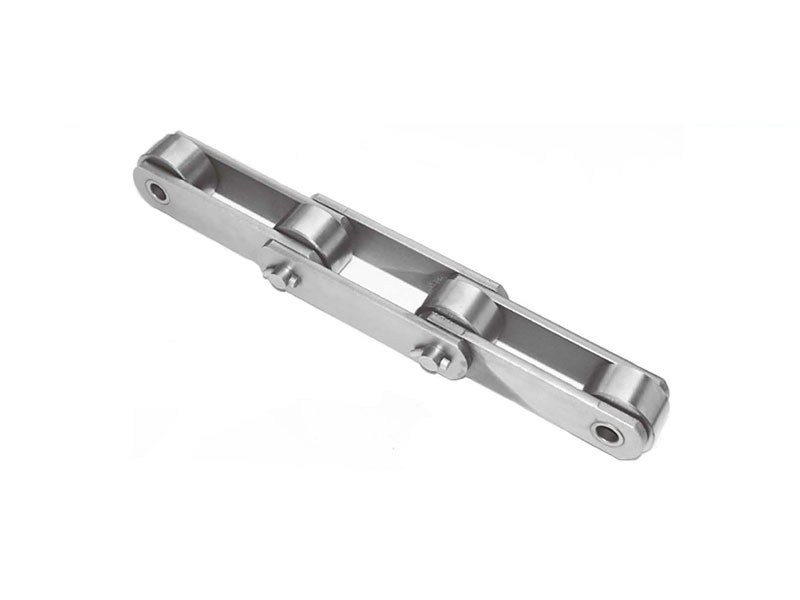

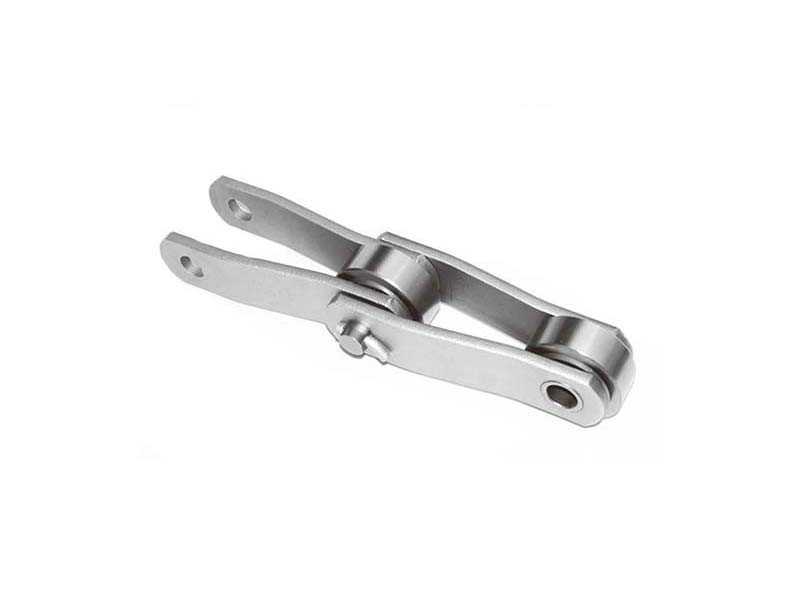

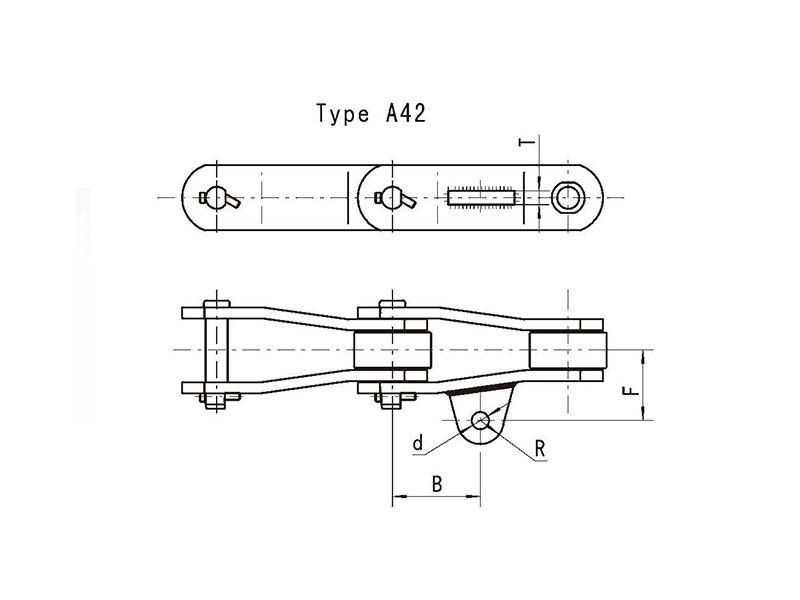

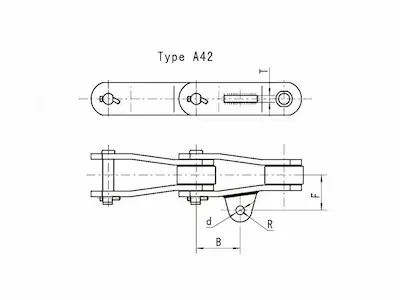

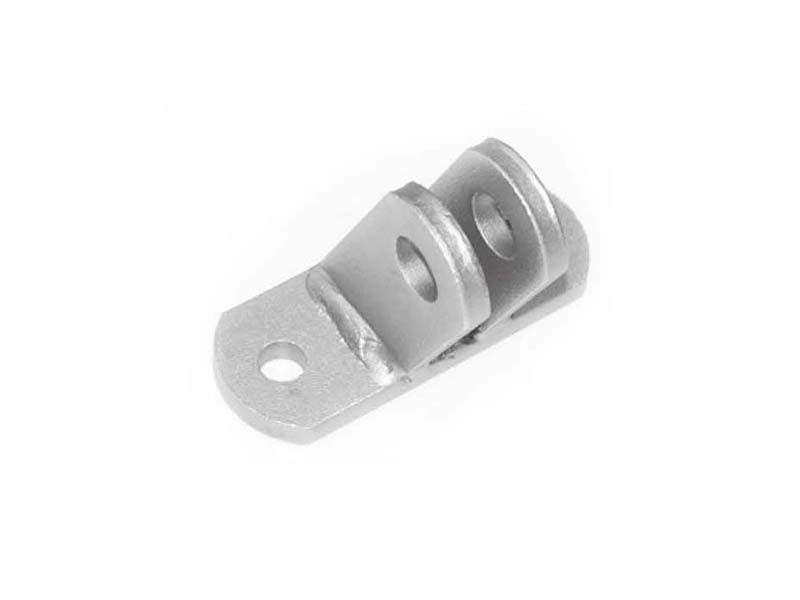

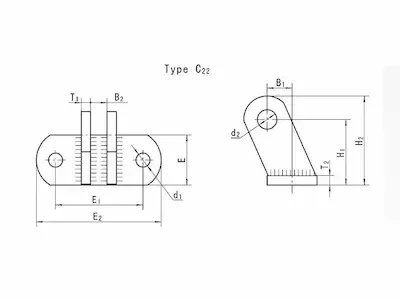

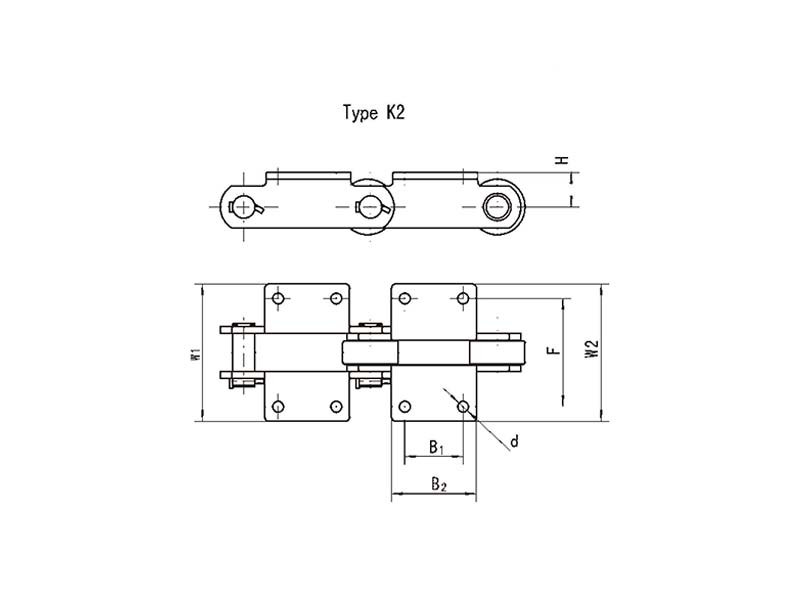

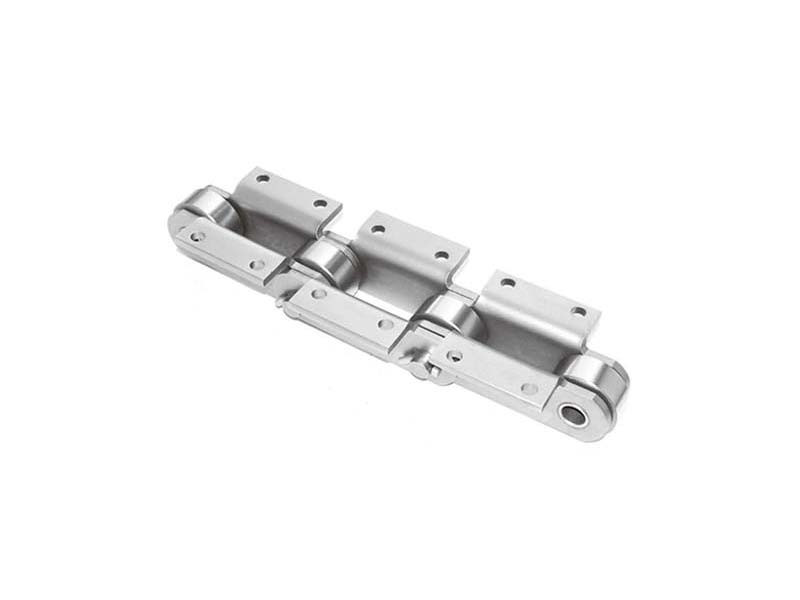

糖機鏈

產品型號： US101.6

描述

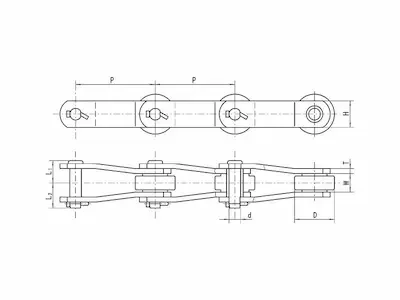

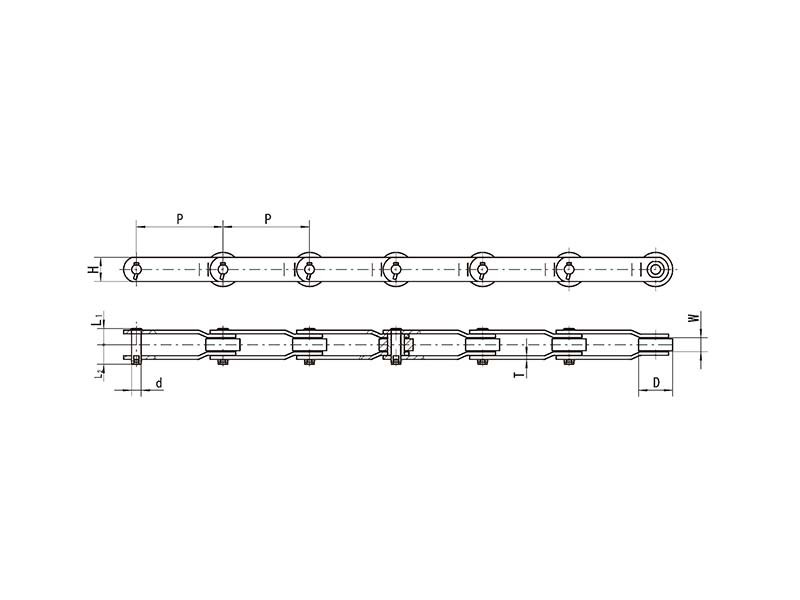

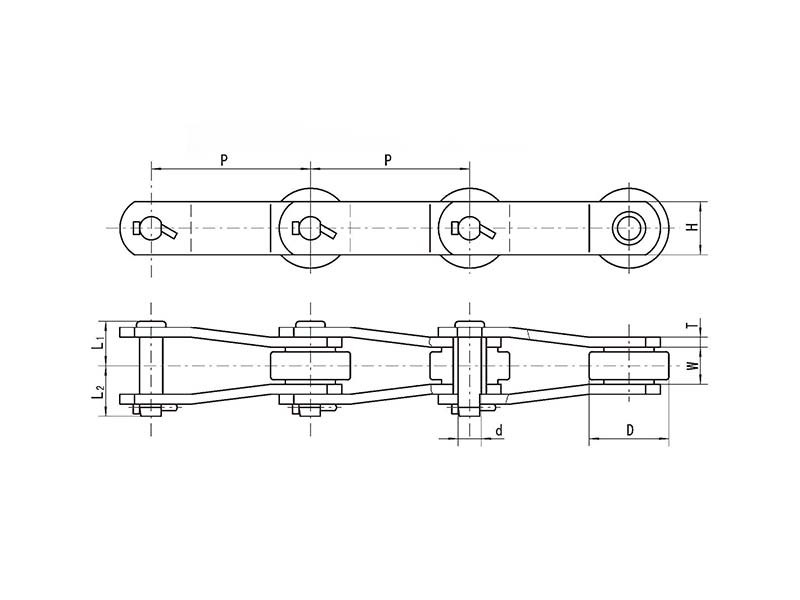

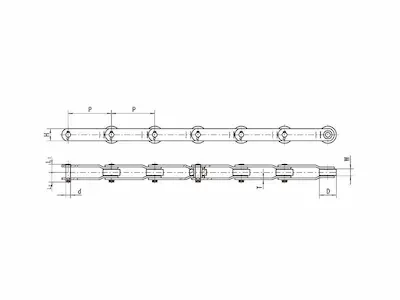

鏈號 Chain No.	節距 Pitch P mm	内節内寬Width between Inner plates W(min) mm	滚子(套简) 外徑 Roller(Bush) diameter D(max) mm	銷軸 Pin			鏈板 Plate		最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	内節内寬Width between Inner plates W(min) mm	滚子(套简) 外徑 Roller(Bush) diameter D(max) mm	d mm	L1 mm	L2 mm	H mm	t/T mm	最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
US101.6	101.6	31.8	57.15	15.88	34.4	38.4	38.1	6.4	72.3	8.2	11.67
P101.6-R47	101.6	30	47	15.88	41	45	41	10	242	19.4	17.98
US127	127	38.4	69.85	19	45.1	51.4	50.8	9.6	180	20.3	19.22
*P152.4-R66.7	152.4	30	66.7	26.92	35.5	41.5	50.8	8	167	13.4	16.11
C9060	152.4	37.7	69.85	18.9	45	49.3	50.8	9.5	250	28.2	17.2
C09063	152.4	38	76.2	23.83	47.1	54.9	61.9	10.3	635	36.1	22.27
*1796	152.4	37.8	69.85 76.2 73	22.23	43.9	53.2	57.2	9.5	444.5	33.3	18.519.519.2
*009061	152.4	37.7	69.85	18.9	44.9	50.3	57.2	9.5	377.9	28.2	18.74

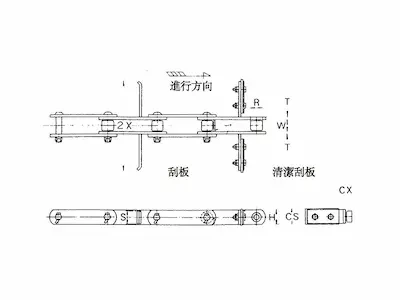

鏈號 Chain No.	節距 Pitch P mm	窄端内寬 Inside diameter W( min) mm	滚子(套筒) 外徑Roller(Bush) diameter D(max) mm	銷軸 Pin			鏈板 Plate		最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight permeter q kg/m
鏈號 Chain No.	節距 Pitch P mm	窄端内寬 Inside diameter W( min) mm	滚子(套筒) 外徑Roller(Bush) diameter D(max) mm	d mm	L 1mm	L2 mm	H mm	T mm	最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight permeter q kg/m
*D2184	152.4	34.9	76.2	22.23	43.9	51.2	50.8	9.5	355.6	31.6	17.7
W1796	152.4	37.8	69.85	22.23	44.2	52.9	57.2	9.5	444.5	31.6	18.59
RO9063	152.4	38	76.2	23.83	47.1	54.9	60.3	10.3	622.3	36.1	21.83
SS1130	152.4	37.7	63.5	19.05	38.5	45.6	50.8	6.4	202	16	13.11
8184	203.2	45.9	88.9	25.4	59.7	65.8	69.9	12.7	742.4	47.6	29.2
SS800	203.2	46.1	88.9	25.4	59.7	69.3	75	12.7	686	55	30.65
22840	228.6	46	99	32	62.3	73.1	86	15	884	71	39.43

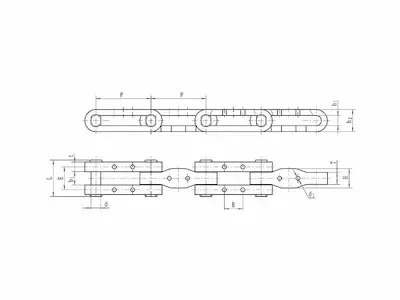

鏈號
Chain
No.

節距
Pitch
P
mm

外節
内寬
Width
between
Outer
plates
b1(min)
mm

銷軸
Pin

鏈板
Plate

最小抗
拉强度
Ultimate
tensile
strength
Q min
kN　

許用
工作
載荷
Rated
working
load
kN

d
mm

L
mm

h1
mm

h2
mm

H
mm

B
mm

E
mm

d1
mm

t/T
mm

P228.6*50.8*88

228.6

160

16.5

50.8

1350

108

鏈號 Chain No.	節距 Pitch P mm	内節内寬 Width between inner plates W(min) mm	滾子外徑 Roller diameter D(max) mm	銷軸 Pin			鏈板 Plate		最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	内節内寬 Width between inner plates W(min) mm	滾子外徑 Roller diameter D(max) mm	d mm	L1 mm	L2 mm	H mm	T mm	最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
ROP9-R90x37.1	228.6	36.8	90	25.4	43.55	55.45	63.5	9.5	328	28	20
P228.6A-R98	228.6	38	98	32.5	60	70	75/80	16	900	72	36.32
P228.6-R98x12.7	228.6	38	98	28.7	55.4	61.6	76.2	12.7	700	56	30.1
