焊接彎板鏈

產品型號： WR78

描述

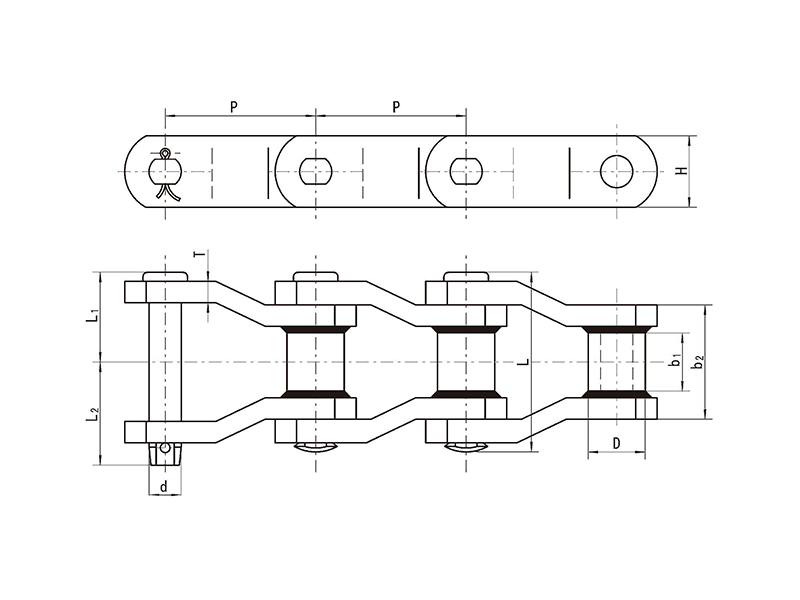

規格A

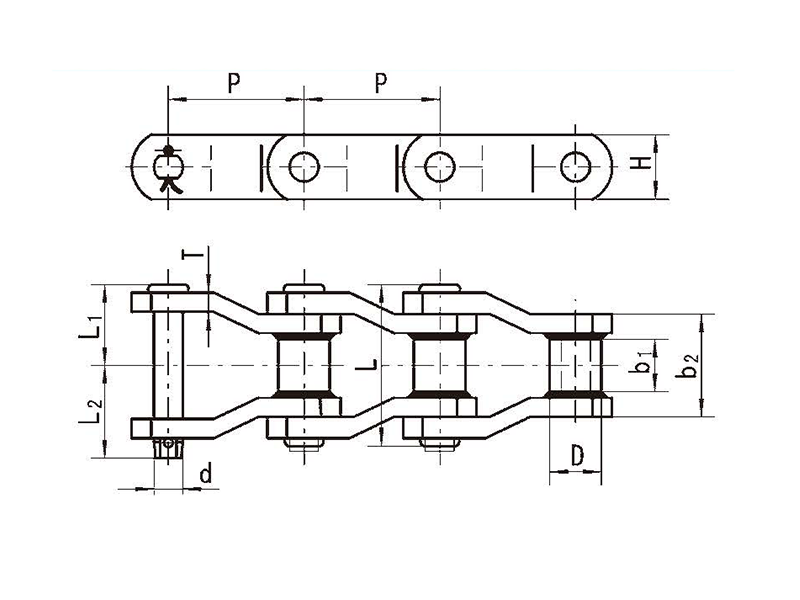

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow end		套筒外徑 Bush diameter D(max) mm	鏈板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strength kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	b1 (min) mm	b2 (max) mm	套筒外徑 Bush diameter D(max) mm	H mm	T mm	d mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strength kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
WR78	66.27	28.6	51	22.23	28.4	6.4	12.7	73	36.3	39.5	106.8	17.8	5.92
WH78	66.27	28.4	51	22.23	28.4	6.4	12.7	72.3	36.3	39.5	160	26.67	5.92
DWR78	66.27	28.4	51	21.2	32	6.4	12.7	72.3	36.3	39.5	130	17.8	6.39
DWH78	66.27	28.4	51	21.2	32	6.4	12.7	72.3	36.3	39.5	160	26.67	6.39
WH78-Nl	66.27	28.6	51	22.8	31.8	7	12.7	75	37.5	41	210	35	7.02
WS78	66.27	20	41.3	21.3	25.4	6.4	12.7	62.9	31.5	34.6	106	17.67	5.04
AF78	66.27	28.4	51	27	31.8	6.4	12.7	72.3	36.3	39.5	106.8	17.8	6.98
*WR78SS	66.27	28.4	52.3	21.2	28.4	6.4	12.7	72.3	36.3	39.5	80	13.33	6.31
WR82	78.1	32	57	25.4	31.8	6.4	14.29	79.5	40	43.5	133.4	22.23	6.85
WH82	78.1	32	57	27	31.8	6.4	14.27	79.5	40	43.5	177.8	29.63	7.14
WH82-N1	78.1	31.8	57.1	25.4	31.8	6.4	14.27	79.5	40	43.5	177.8	29.63	6.85

規格A

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow End		套筒外徑 Bush diameter D(max) mm	鏈板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strenqth °KN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	b1 (min) mm	b2 (max) mm	套筒外徑 Bush diameter D(max) mm	H mm	T mm	d mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strenqth °KN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
WR106	152.4	41.2	71.6	37.1	38.1	9.7	19.13	102.5	52	56	176.7	29.45	9.6
WH106	152.4	41.2	71.6	31.75	38.1	9.5	19.05	102.5	52	56	266	44.33	9.6
WR111	120.9	57.2	85.7	37.1	38.1	9.7	19.05	110.2	59.35	63.25	154	25.67	13
WH111	120.9	50.8	85.7	31.75	38.1	9.7	19.05	110.2	59.35	63.25	224	37.33	13
WR124	101.6	41.2	71.5	37.1	38.1	9.5	19.05	102.5	52	56	204	34	11.52
WH124	101.6	41.2	71.5	37.1	38.1	9.5	19.05	102.5	52	56	266.7	44.45	11.52
WR132	153.67	76.2	111.6	44.7	50.8	12.7	25.48	152.7	77.3	81.7	275.8	45.97	21.03
WH132	153.67	76.2	111.6	44.5	50.8	12.7	25.4	152.7	77.3	81.7	378.1	63.02	21.03
WR150	153.67	76.2	111.6	44.45	63.5	12.7	25.4	152.7	77.3	81.7	450	75	24.86
WH150	153.67	76.2	111.6	44.5	63.5	12.7	25.4	152.7	77.3	81.7	600	100	24.86
WH720S	152.4	2&5	55	32	40	10	19.05	-	44.5	49.5	224	37.33	9.65
FWHX150	153.67	71	110	44.5	65	12	25	148.7	75	81	540	90	24.7

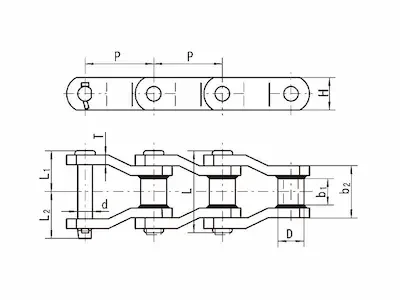

規格B

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow End		套筒外徑 Bush diameter	鏈板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净直 Weight permeter q kg/m
鏈號 Chain No.	節距 Pitch P mm	bi (min)mm	b2 (max)mm	D (max)mm	H mm	T mm	d mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strength Q(min) kN	許用工作載荷 Rated working load kN	每米净直 Weight permeter q kg/m
WR78XHD	66.95	25.4	51.2	25.4	31.8	9.5	14.27	79.5	40.5	45	133	22.17	9.32
WH78XHD	66.95	25.4	51.2	25.4	31.8	9.5	14.27	79.5	40.5	45	160	26.67	9.32
WR82XHD	78.1	28.6	60.8	31.75	38.1	9.5	19.05	91.8	46.7	50.6	224	37.33	12.7
WH82XHD	78.1	28.6	60.8	31.75	38.1	9.5	19.05	91.8	46.7	50.6	253	42.17	12.7
WR124XHD	103.2	38.1	76.3	41.28	50.8	12.7	25.4	117.4	59.68	64.02	373.4	62.23	21.23
WH124XHD	103.2	38.1	76.3	41.28	50.8	12.7	25.4	117.4	59.68	64.02	542.3	90.38	21.23

規格C

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow End		套筒外徑 Bush diameter D (max) mm	鏈板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strength Q (min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	bi (min) mm	b2 (max) mm	套筒外徑 Bush diameter D (max) mm	H mm	T mm	d mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strength Q (min) kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
WHX124	101.6	41.2	71.11	36.53	38.1	9.5	19	105.6	51.88	56.12	225	37.5	12.45
WHX132	153.67	72.1	111.76	44.45	50.8	12.7	25.2	151.3	77.54	84.16	377.8	62.97	20.42
WHX150	153.67	72.1	111.76	44.45	63.5	12.7	25.2	151.3	77.54	84.16	400	66.67	24.48
WHX155	153.67	69.85	112.01	44.45	63.5	14.3	28.37	154.8	78.03	86.87	453	75.5	27.42
WHX157	153.67	69.85	118.11	44.45	63.5	15.9	28.52	163.3	82.1	91.9	520	86.67	29.03

規格D

鏈號 Chain No.	B mm	D mm	E mm	F mm	H mm	W mm	T mm

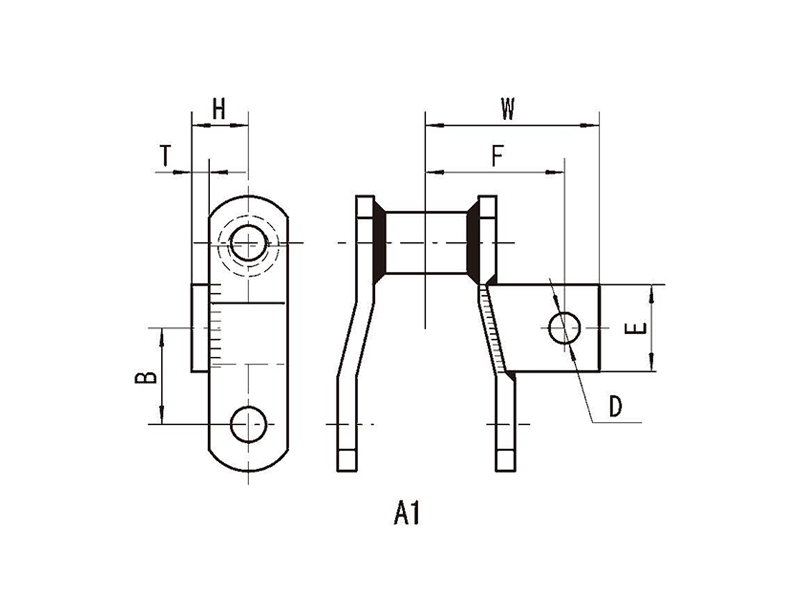

A1
WH78	31.75	10.4	31.75	50.8	20.7	63.5	6.4
WH82	38.1	10.4	44.45	53.1	22.3	69.85	6.4

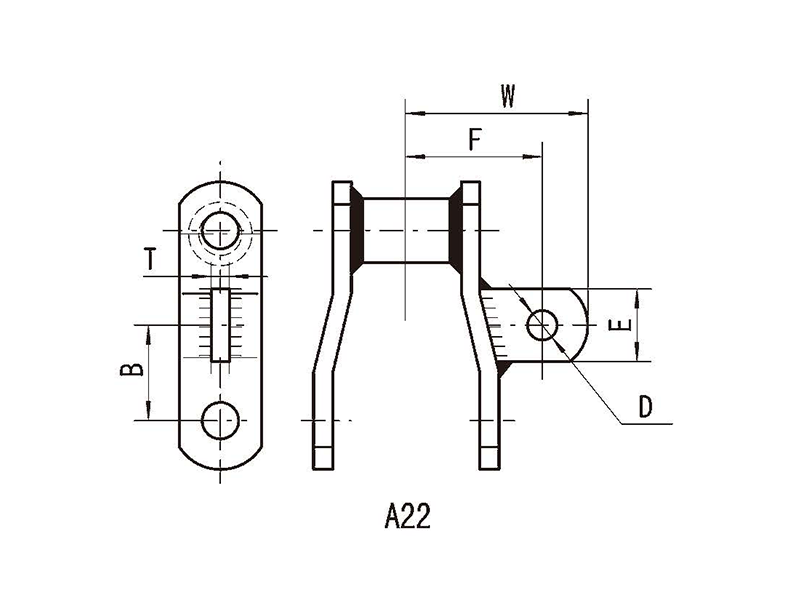

A22
WH78	33.3	10.4	25.4	47.8	-	63.5	9.5

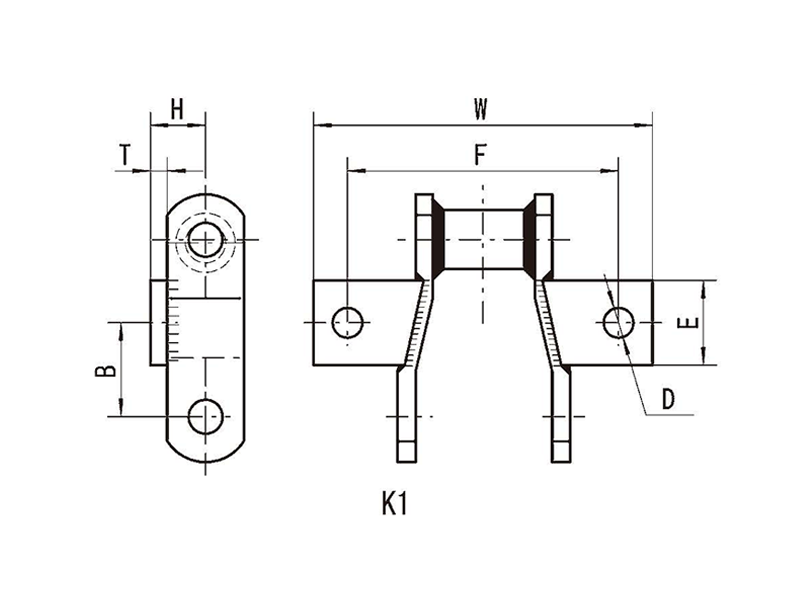

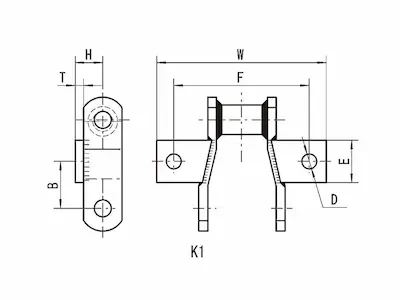

K1
WH78	31.75	10.4	31.75	101.6	20.7	127	6.4
WH82	38.1	10.4	44.45	106.2	22.3	139.7	6.4

規格E

鏈號 Chain No.	B mm	D mm	E1 mm	E2 mm	F mm	H mm	W mm	T mm

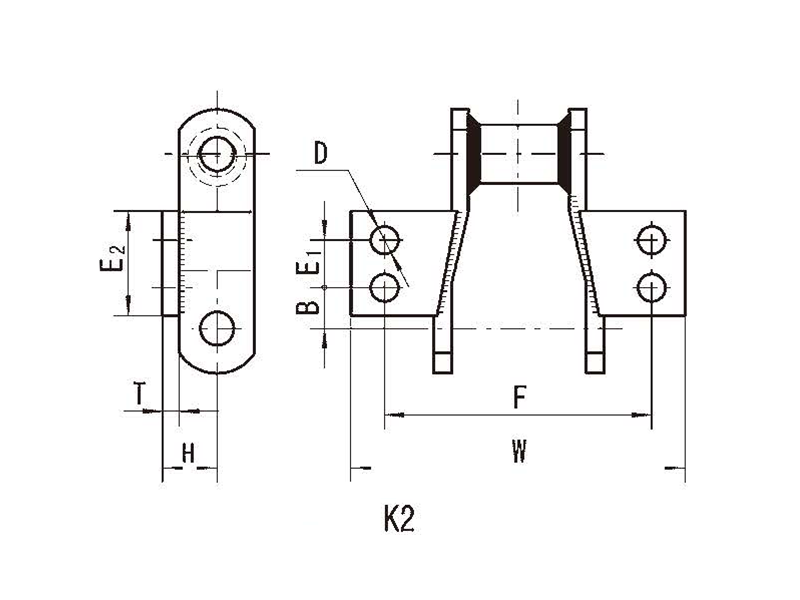

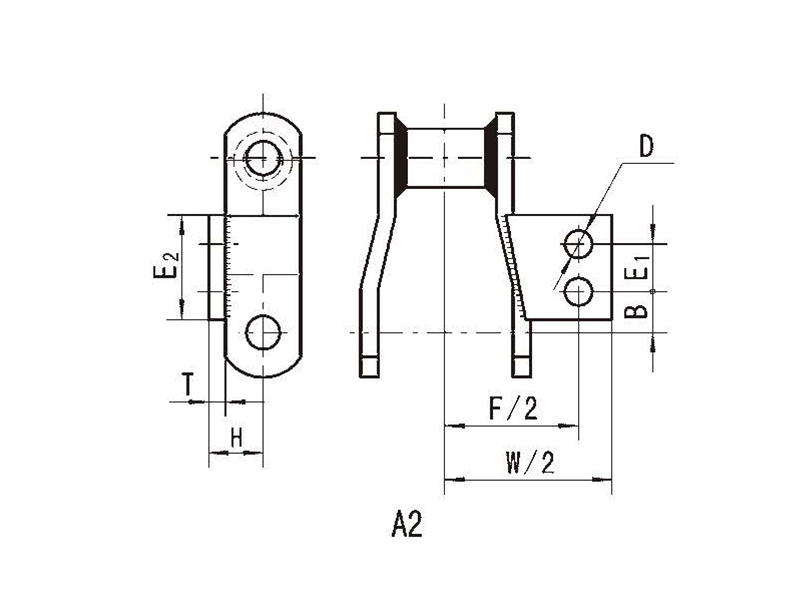

A2、K2
WH78	10.4	10.4	28.7	50.8	101.6	20.7	127	6.4
WH82	19.05	10.4	33.3	57.15	108.2	22.3	136.6	6.4
WHX124	22.4	10.4	49.3	76.2	133.6	28.6	162	9.5
WHX132	41.4	14.3	69.85	108	190.5	38.1	233.2	12.7
WHX150	41.4	14.3	69.85	106.5	190.5	44.45	233.2	12.7
WHX155	41.4	14.3	69.85	106.5	190.5	46	233.2	14.3
WHX157	44.45	14.3	63.5	101.6	203.2	47.75	242.8	16

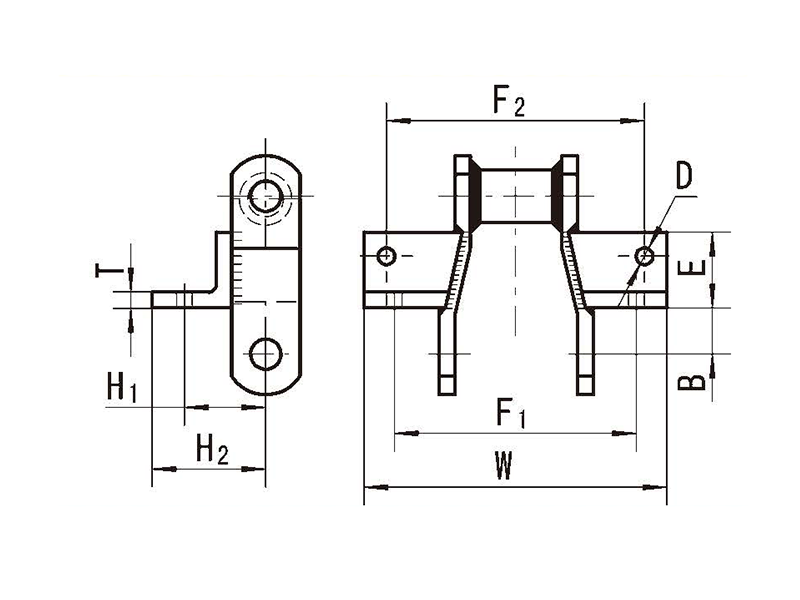

規格F

鏈號 Chain No.	B mm	D mm	E mm	F1 mm	F2 mm	H1 mm	H2 mm	T mm	W mm

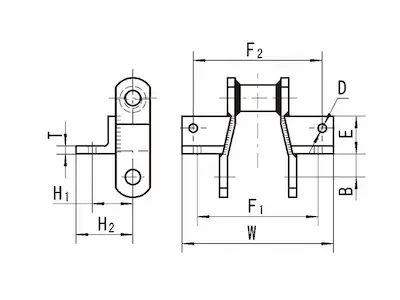

F2
WH78	14.23	10.4	31.75	95.25	/	36.58	58.67	6.4	119
F4
WH78	17.53	10.4	31.75	95.25	114.3	44.45	5&67	6.4	139.7
WH82	20.57	10.4	2&7	104.9	127	45.97	60.45	6.4	150.9
WHX124	22.35	10.4	36.07	111.25	133.35	52.32	77.72	9.5	157.2

規格G

鏈號 Chain No.	B mm	F mm	H1 mm	H2 mm	T mm

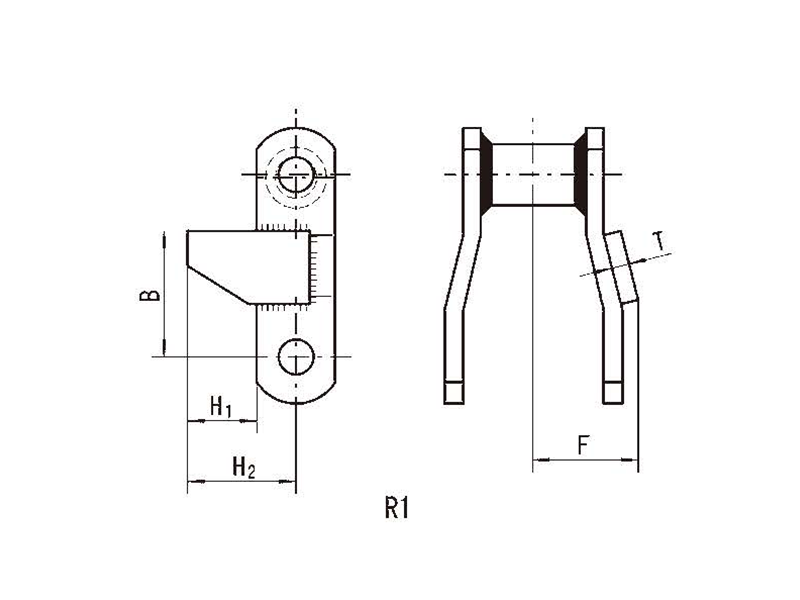

R1
WH78	47.75	38.1	25.4	39.7	6.4
WH82	55.4	41.4	31.85	47.75	6.4
WHX124	69.1	54.9	28.7	47.75	9.5

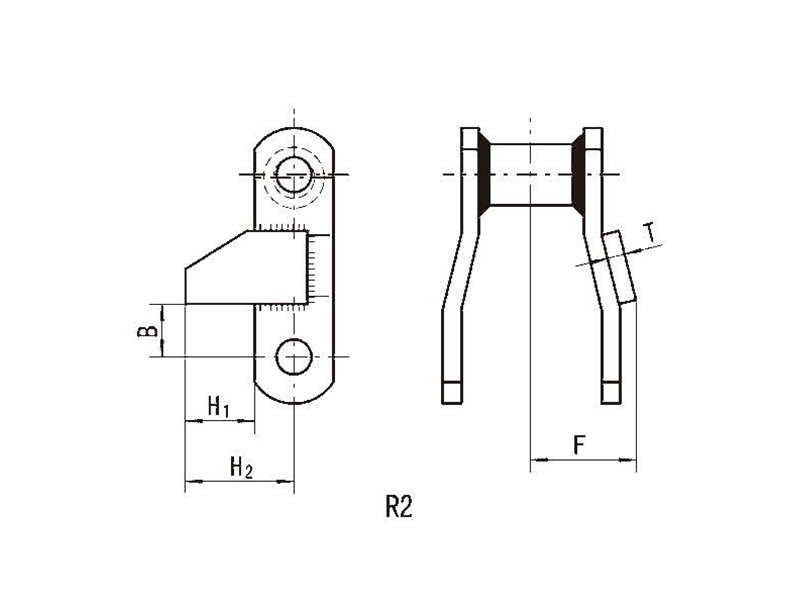

R2
WH78	17.5	38.1	25.4	39.7	6.4
WH82	22.4	41.4	31.85	47.75	6.4
WHX124	31.75	54.9	28.7	47.75	9.5

規格H

鏈號 Chain No.	B mm	F mm	H1 mm	H2 mm	T mm

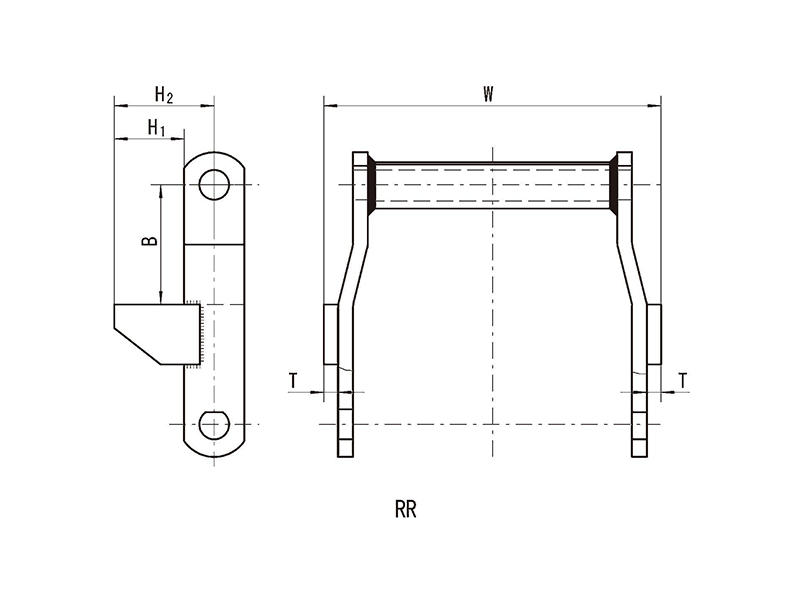

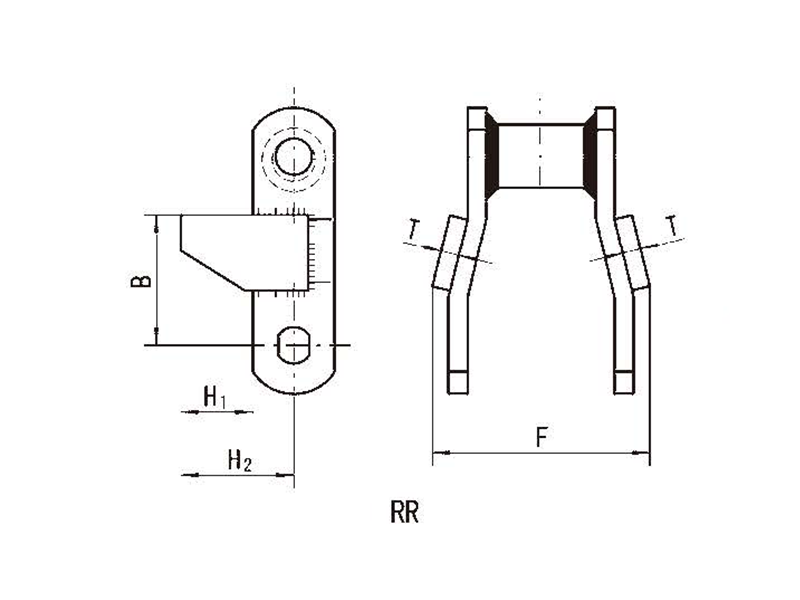

RR
WH78	47.75	76.2	25.4	39.7	6.4
WH82	55.4	82.8	31.85	47.75	6.4
WHX124	69.1	109.8	28.7	47.75	9.5

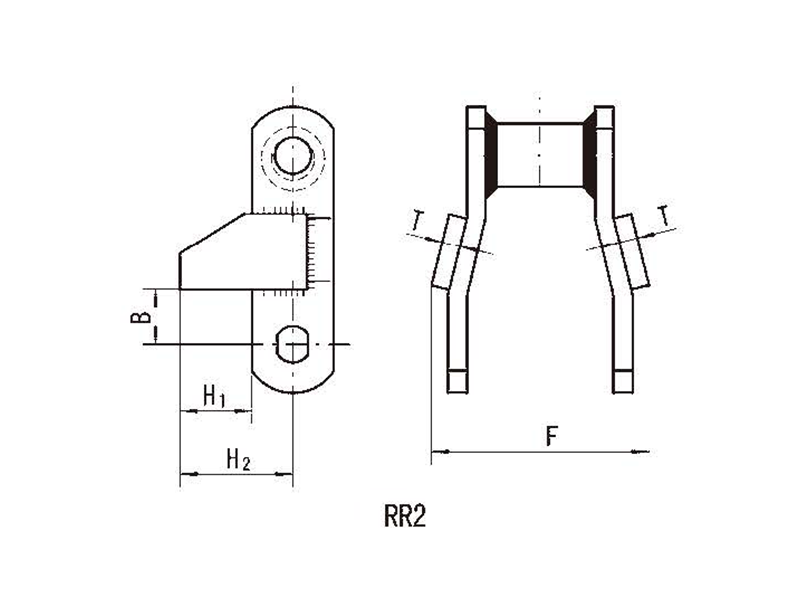

RR2
WH78	17.5	76.2	25.4	39.7	6.4
WH82	22.4	82.8	31.85	47.75	6.4
WHX124	31.75	109.8	2&7	47.75	9.5

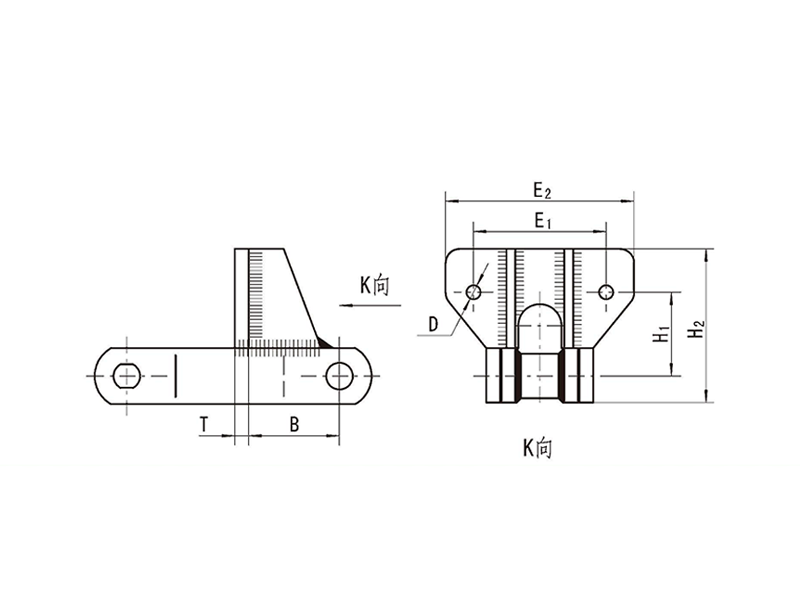

規格I

鏈號 Chain No.	H1 mm	H2 mm	E1 mm	E2 mm	D mm	B mm	T mm

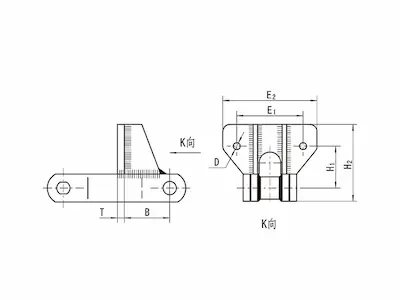

F226
WH720S	60	110	95	135	10	66	10

規格J

鏈號 Chain No.	B mm	F mm	H mm	T mm	W mm
H1
WH78	12.7	31.7	92.2	6.4	44.5
WH82	16	38	92.2	6.4	50.8

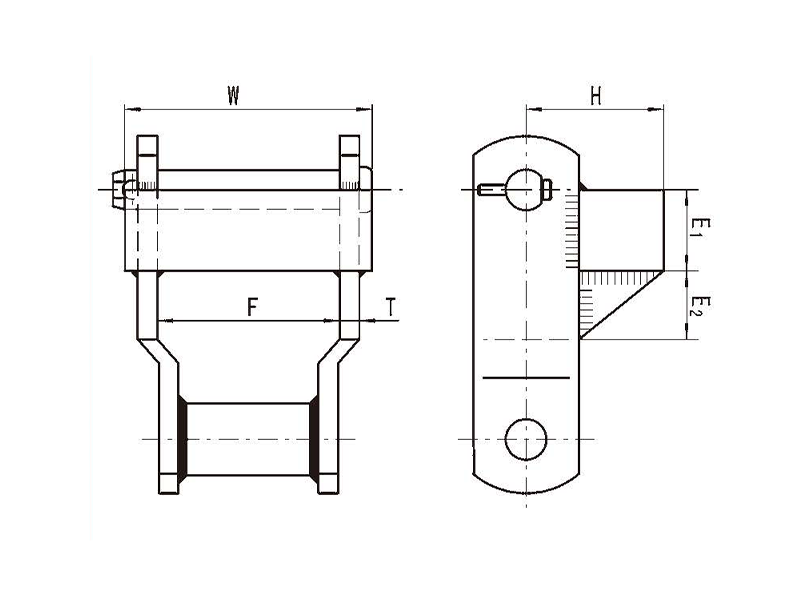

規格K

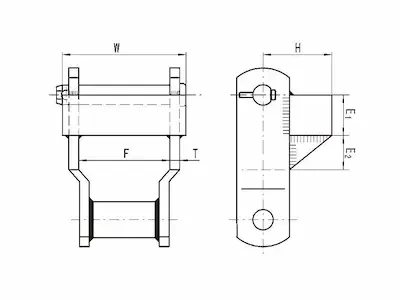

鏈號 Chain No.	E1 mm	E2 mm	F(min) mm	H mm	T mm	W mm
71536LT000	50	50	112.7	85.75	12	152

規格L

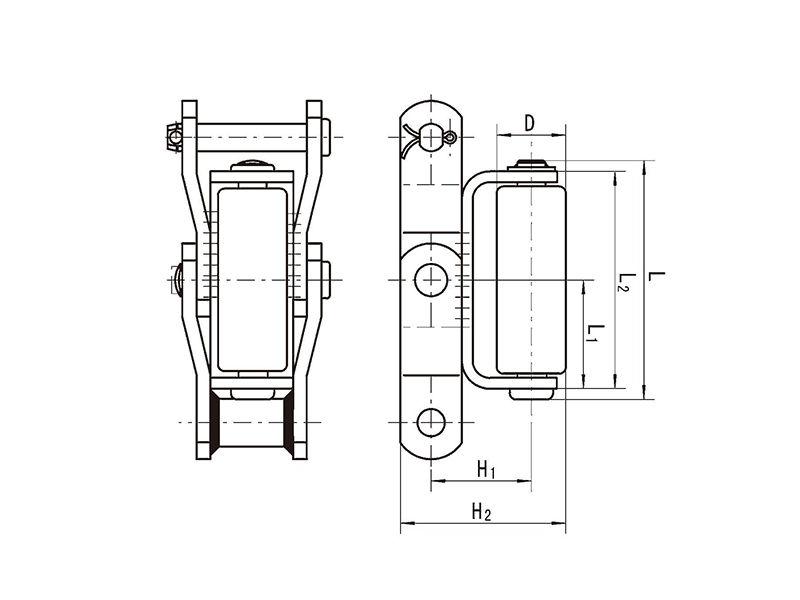

鏈號 Chain No.	D mm	H1 mm	H2 mm	L mm	L1 mm	L2 mm

DWR78-F20	32	46.6	78.5	121	55.5	111

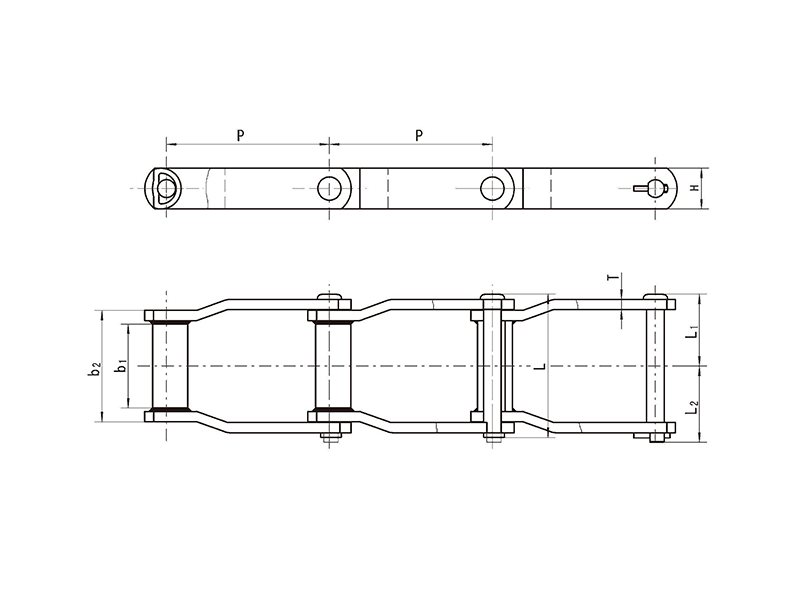

規格M

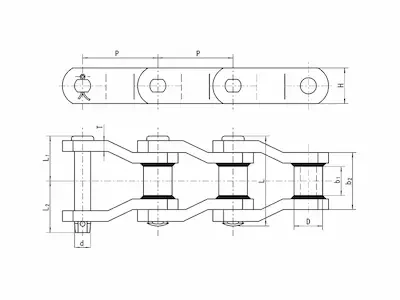

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow End		鍾板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strength Q mln kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	bi (min) mm	b2 (max) mm	H mm	T mm	d mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strength Q mln kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
WDH110	152.4	228.6	263.53	3&1	9.5	18.9	299.7	147.75	154.45	244.5	40.75	16.9
WDR110	152.4	228.6	263.53	38.1	9.5	18.9	299.7	147.75	154.45	169	28.17	16.9
WDH112	203.2	228.6	263.53	38.1	9.5	18.9	299.7	147.75	154.45	244.5	40.75	14.11
WDR112	203.2	228.6	263.53	38.1	9.5	18.9	299.7	147.75	154.45	169	28.17	14.11
WDH120	152.4	222.25	260.35	50.8	12.7	22.07	305	150.47	156.93	351.4	58.57	28.64
WDR120	152.4	222.25	260.35	50.8	12.7	22.07	305	150.47	156.93	311.4	51.9	28.64
WDH480	203.2	285.75	323.85	50.8	12.7	22.07	369	182.2	188.7	351.4	58.57	26.91
WDR480	203.2	285.75	323.85	50.8	12.7	22.07	369	182.2	188.7	311.4	51.9	26.91

鏈號 Chain No.	節距 Pitch P mm	窄端 Narrow End		鏈板 Sidebars		銷軸 Pin				最小抗拉强度 Ultimate tensile strength Q min kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
鏈號 Chain No.	節距 Pitch P mm	bi (min) mm	b2 (max )mm	H mm	T mm	D mm	L mm	L1 mm	L2 mm	最小抗拉强度 Ultimate tensile strength Q min kN	許用工作載荷 Rated working load kN	每米净重 Weight per meter q kg/m
WDH2210	155.85	228.6	263.53	38.1	9.5	18.9	299.7	147.75	154.45	244.5	40.75	16.7
WDR2210	155.85	228.6	263.53	38.1	9.5	18.9	299.7	147.75	154.45	169	28.17	16.7
WDH2380	207.29	285.75	323.85	50.8	12.7	22.07	369	182.2	188.7	351.4	58.57	26.56
WDR2380	207.29	285.75	323.85	50.8	12.7	22.07	369	182.2	188.7	311.4	51.9	26.56

規格N

鏈號 Chain No.	B mm	H mm	T mm	W mm

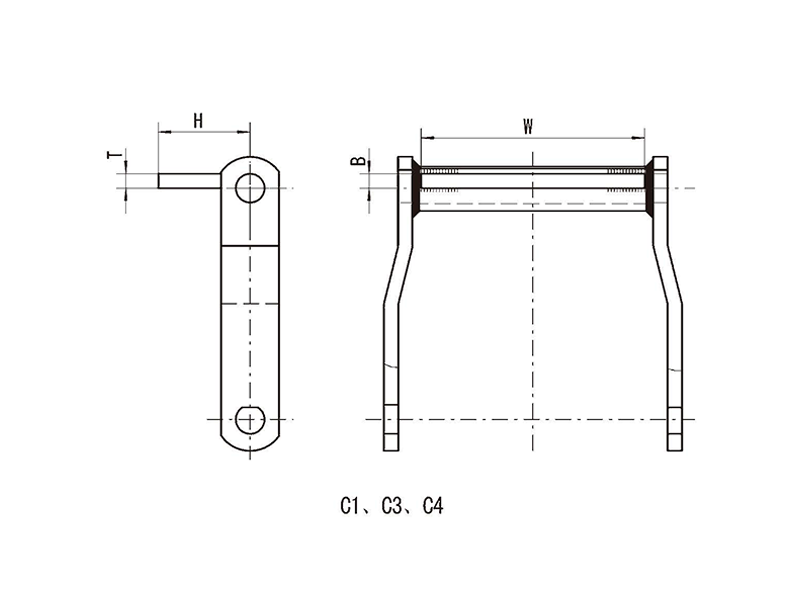

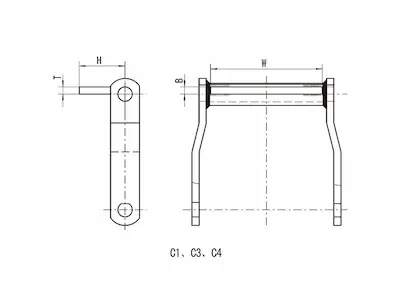

C1
WDH110	9.5	60.5	9.5	231.9
WDR110	9.5	60.5	9.5	231.9
WDH112	9.5	60.5	9.5	231.9
WDR112	9.5	60.5	9.5	231.9
C3
WDH120	12.7	76.2	12.7	219.2
WDR120	12.7	76.2	12.7	219.2
WDH480	12.7	76.2	12.7	282.7
WDR480	12.7	76.2	12.7	282.7
C4
WDH110	9.5	95.25	9.5	231.9
WDR110	9.5	95.25	9.5	231.9
WDH112	9.5	95.25	9.5	231.9
WDR112	9.5	95.25	9.5	231.9
WDH480	12.7	127	12.7	282.7
WDR480	12.7	127	12.7	282.7

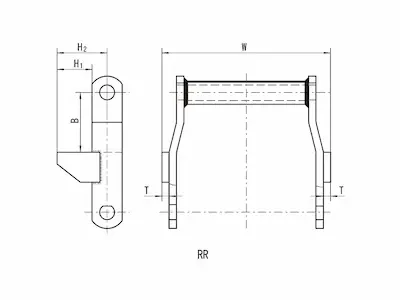

規格O

鏈號 Chain No.	B mm	H1 mm	H2 mm	T mm	W mm
RR
WDH110	76.2	44.45	63.5	9.5	302.7
WDR110	76.2	44.45	63.5	9.5	302.7
WDH112	76.2	44.45	63.5	9.5	302.7
WDR112	76.2	44.45	63.5	9.5	302.7
WDH2210	76.2	44.45	63.5	9.5	302.7
WDR2210	76.2	44.45	63.5	9.5	302.7
WDH120	76.2	57.15	82.55	12.7	313.4
WDR120	76.2	57.15	82.55	12.7	313.4
WDH480	76.2	57.15	82.55	12.7	377
WDR480	76.2	57.15	82.55	12.7	377
WDH2380	76.2	57.15	82.55	12.7	377
WDR2380	76.2	57.15	82.55	12.7	377
