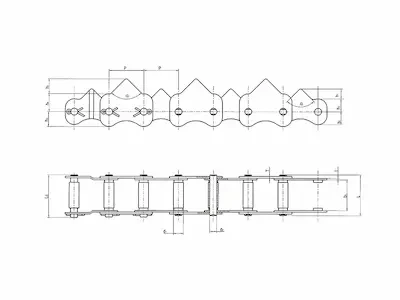

鏈號 Chain No. | 節距 Pitch | 滚子直徑 Roller diameter | 内節内寬 Width betwee ninner plates | 銷軸直徑 Pin diameter | 銷軸長度 Pin length | 齒形角 Tooth angle | 鏈板尺寸 Plate dimension | 鏈板厚度 Plate thickness | 極限拉伸載荷 Ultimate tensile strength | 平均拉伸載荷 Average tensile strength | ||||
P | di max | b1 min | d2 max | L max | Lc max | a | h1 | h2 | h3 | h4 | t/T max | Q min | Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
S3558T-48001 | 35 | 10.1 | 58 | 7 | 69.4 | 72 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23 |
S3558T-48001Y1 | 35 | 12.6 | 58 | 10 | 69.4 | 71.2 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23 |
S3558T-4fi002 | 35 | 12.8 | 58 | 7 | 69.4 | 72 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23 |
