水稻收割機鏈條S3322T
規格

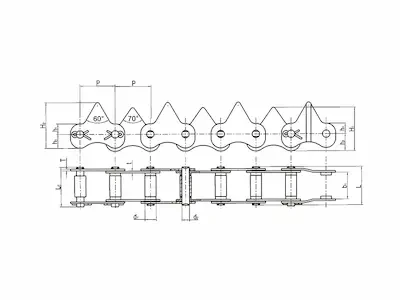

| 鏈號 Chain No. | 節距 Pitch | 滚子直徑 Roller diameter | 内節内寬 Width between inner plates | 銷軸直徑 Pin diameter | 銷軸長度 Pinlength | 鏈板尺寸 Plate dimension | 鏈板厚度Plate thick ness | 極限拉伸載荷 Ultimate tensile strength | 平均拉伸載荷 Average tensile strength | |||||
| P | d1 max | b1 min | d2 max | L max | Lc max | h1 | h2 | Hi | h3 | H2 | t/T max | Q | Qo | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | |
| S3322T-63203 | 33 | 10.1 | 22 | 7 | 33 | 35.7 | 10 | 16 | 36 | 13 | 43 | 1.6/2.0 | 19.6 | 23 |
| S3330T-66103 | 33 | 10.1 | 30 | 7 | 40.9 | 43.7 | 10 | 16 | 36 | 13 | 43 | 1.6/2.0 | 19.6 | 23 |
