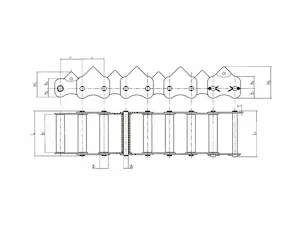

| 鏈號 Chain No. | 節距 Pitch | 滾子直徑 Roller diameter | 内節内寬 Width between inner plates | 銷軸直徑 Pin diameter | 銷軸長度 Pin length | 齒形角 Tooth angle | 鏈板尺寸 Plate dimension | 鏈板厚度 Plate thickness | 極限拉伸載荷 Ultimate tensile strength | 平均拉伸載荷 Average tensile strength | ||||
| P | d1 max | b1 min | d2 max | L max | a | hi | h2 | h3 | H1 | H2 | t/T max | Q min | Qo | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
| 3558-48180 | 33 | 12.8 | 58 | 7 | 70.5 | 90D | 15 | 13 | 18 | 38 | 48 | 1.6 | 27.44 | 28.5 |
