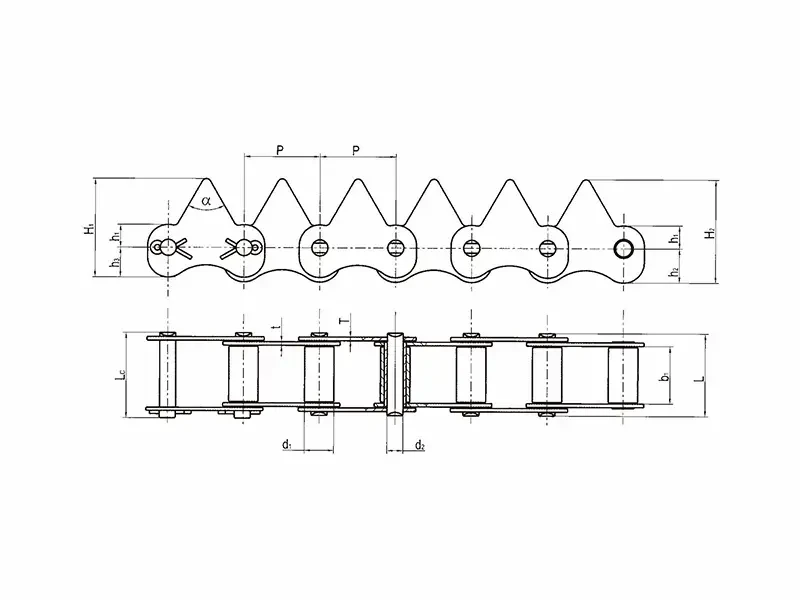

| 鏈號 Chain No. | 節距 Pitch | 滾子直徑 Roller diameter | 内節内宽 Width between inner plates | 銷紬直徑 Pin diameter | 銷紬長度 Pin length | 齒形角 Tooth angle | 鏈板尺寸 Plate dimension | 鏈板厚度 Plate thickness | 極限拉伸載荷 Ultimate tensile strength | 平均拉伸載荷 Average tensile strength | |||||
| P | d1 max | b1 min | d2 max | L max | Lc max | a | h1 | h2 | h3 | Hi | H2 | t/T max | Q min | Qo | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
| 3330-66402 | 33 | 12.7 | 30 | 5.94 | 44.2 | 46.5 | 60° | 10 | 15 | 13 | 43 | 45 | 2.42 | 19.61 | 22.5 |
