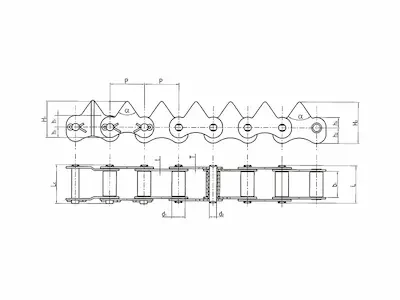

鏈號 Chain No | 節距 Pitch | 滚子直徑 Roller diameter | 内節内寬 Width between inner plates | 銷軸直徑 Pindiameter | 銷紬長度 Pin length | 齒形角 Tooth angle | 鏈板尺寸 Plate dimension | 鏈板厚度Plate thickness | 極限拉伸載荷Ultimate tensile strength | 平均拉伸載荷Average tensile strength | ||||
P | di max | b1 min | d2 max | L max | Lc max | a | h1 | H1 | h2 | H2 | t/T max | Q min | Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
3325-1E8350 | 33 | 10.1 | 25 | 7 | 34.2 | 37.8 | 90° | 10 | 35 | 13 | 38 | 1.6/1.2 | 19.6 | 22 |
3325-1E6110 | 33 | 10.1 | 25 | 7 | 34.2 | 37.8 | 70° | 10 | 35 | 13 | 38 | 1.6/1.2 | 19.6 | 22 |
