水稻收割機鏈條3322

規格

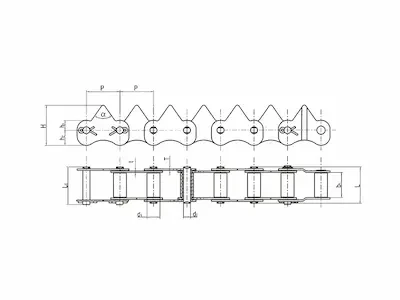

鏈號 Chain No.	節距 Pitch	滚子直徑 Roller diameter	内節内寬 Width between inner plates	銷軸直徑 Pin diameter	銷軸長度 Pin length		歯形角 Tooth angle	鏈板尺寸 Plate dimension			鏈板厚度 Plate thickness	極限拉伸載荷 Ultimate tensile strength	平均拉伸載荷 Average tensile strength
	P	di max	b1 min	d2 max	L max	Lc max	a	hi	h2	H	t/T max	Q min	Qo
	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	KN	KN
3322-63202	33	12.7	22	5.94	36.4	38.4	70°	10	15	40	2.42	19.6	22.5
3325-23150	33	12.8	25	7	35.9	38.7	60°	10	13	43	1.6	21.6	24.5
3330-28361	33	12.8	30	7	40.9	43.7	60°	10	13	43	1.6	21.6	24.5
3330-27150	33	12.8	30	7	40.9	43.7	70°	10	13	3B	1.6	21.6	24.5
