棕櫚油鏈

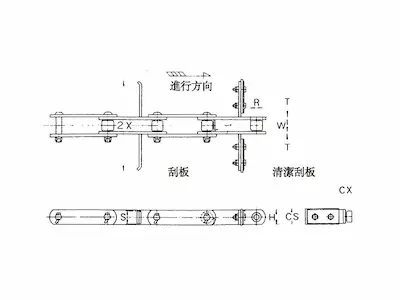

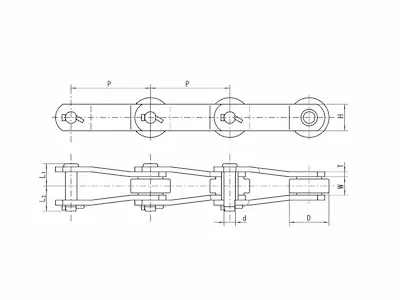

規格A
| 鏈號 Chain No. | 節距 Pitch P mm | 内節 内寬 Width between inner plates W(min) mm | 滚子 外徑Roller diameter D(max) mm | 銷軸 Pin | 鏈板 Plate | 最小抗 拉强度 Ultimate tensiles trength Q(min) kN | 許用 工作 載荷 Rated working load kN | 每米 净重 Weight per meter q kg/m | |||
| d mm | L1 mm | L2 mm | H mm | t/T mm | |||||||
| B3076 | 76.2 | 15.2 | 31.75 | 13.97 | 21.4 | 26.6 | 25.8 | 4 | 33.4 | 3.1 | 3.7 |
| *B1016H | 101.6 | 19 | 47.63 | 19.05 | 27.7 | 34.3 | 38.1 | 6.4 | 135 | 12.6 | 8.21 |
| PM90R | 101.6 | 22 | 47.6 | 11.1 | 23.5 | 27.7 | 32 | 4.5 | 95 | 8.9 | 5.8 |
| PM94R | 101.6 | 30 | 50.8 | 14.27 | 32 | 36.7 | 38.1 | 6.4 | 158 | 14.4 | 9.88 |
| PM94RA | 101.6 | 23.5 | 48 | 14.27 | 28.6 | 33.6 | 38.1 | 6.4 | 158 | 14.4 | 8.54 |
| ES90-R20 | 101.6 | 21.4 | 47.6 | 11.1 | 25 | 29.9 | 32 | 4.9 | 100 | 9.2 | 6.18 |
| ES4P23 | 101.6 | 19.05 | 47.63 | 19.05 | 25.2 | 30.8 | 38.1 | 5.1 | 95 | 8.8 | 7.29 |
| 4x15000 | 101.6 | 18.9 | 47.63 | 19.05 | 24.5 | 30.1 | 40 | 5月6日 | 66.7 | 6.1 | 7.44 |
| 4 x 18000 | 101.6 | 19 | 47.6 | 19 | 23.2 | 26.8 | 40 | 5 | 80 | 7.4 | 6.89 |
| 6 x 30000 | 152.4 | 25.4 | 56.7 | 26.9 | 33.9 | 40.9 | 50.8 | 6 | 133 | 14.6 | 10.36 |
| B5289 | 152.4 | 25 | 66.8 | 22.07 | 30.5 | 37.1 | 50.8 | 6.4 | 178 | 17.3 | 11.35 |
| B5257 | 152.4 | 36 | 34.95 | 17.4 | 39.7 | 46.8 | 44.45 | 8 | 223 | 21.8 | 9.19 |
| B5326H | 152.4 | 19 | 47.5 | 19.05 | 24.9 | 31.6 | 38.1 | 5 | 88.9 | 8.5 | 5.78 |
| ES6P36 | 152.4 | 25.4 | 66.7 | 26.9 | 37.1 | 43.9 | 50.8 | 7.8 | 215 | 20.2 | 13.43 |
| B5305 | 160 | 37.8 | 70 | 17.48 | 37.2 | 43.9 | 50.8 | 6.4 | 245 | 22.8 | 13.55 |
- 鏈條零部件有碳鋼和不銹鋼兩種材質•
- Chains:There are two kinds of materials for pin and bushing , which are Carbon steel and stainless steel.

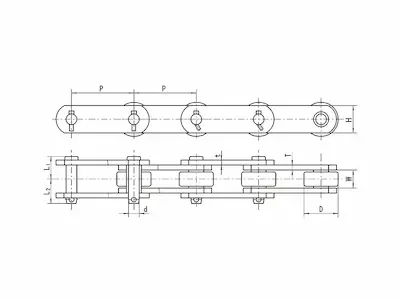

規格B
| 鏈號 Chain No. | 節距 Pitch P mm | 窄端 内寬 Inside diameter W(min) mm | 滚子(套筒) 外徑 Roller(Bush) diameter D(max) mm | 銷軸 Pin | 鏈板 Plate | 最小抗 拉强度 Ultimate tensile strength Q min kN | 許用 工作 載荷 Rated working load kN | 每米 净重 Weight per meter q kg/m | |||
| d mm | L1 mm | L2 mm | H mm | T mm | |||||||
| B5029 | 66.17 | 28 | 22.23 | 11.1 | 31.7 | 35.1 | 28.6 | 6.4 | 122.8 | 8.1 | 5.41 |
| #B5094 | 101.6 | 39.8 | 36.5 | 15.77 | 43.3 | 46.1 | 44.45 | 8 | 180 | 12.1 | 11.36 |
| B5234 | 152.4 | 34.9 | 76.2 | 22.3 | 43.9 | 53.4 | 50.8 | 9.5 | 355.6 | 24.9 | 17.93 |
- 鏈條爲套筒鏈，無滚子.
- Chain: bushing chain with no roller.
