板式鏈條

產品型號： AL422

描述

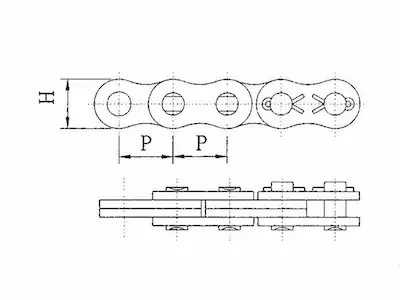

CHC 鍵號	鏈板組合	節距 P		鏈板厚度		銷軸外徑	銷軸長度	Average Ultimate Strength kgf	Approx weight kg/m
CHC 鍵號	鏈板組合	inch	mm	H	T	D	L	Average Ultimate Strength kgf	Approx weight kg/m
AL422	2x2	1/2"	12.7	10.2	1.5	3.96	8.05	1800	0.36
AL444	4x4						14.35	500	0.69
AL466	6x6						20.7	5300	1.05
AL522	2x2	5/8"	15.875	13	2	5.08	10.6	3100	0.6
AL523	2x3						12.65	3800	0.72
AL544	4x4						19	6000	1.15
AL566	6x6						27.4	9600	1.7
AL588	8x8						35.8	12400	2.26
AL622	2x2	3/4"	19.05	15.5	2.35	5.95	12.4	4300	0.79
AL623	2x3						14.85	5450	0.98
AL644	4x4						22.3	9000	1.5
AL646	4x6						27.3	11250	1.9
AL666	6x6						32.25	13500	2.31
AL688	8x8						42.2	18000	3.08
AL822	2x2	1"	25.4	20.4	3.1	7.94	15.65	7800	1.36
AL844	4x4						28.45	15600	4.01
AL866	6x6						41.25	23400	5.36
AL888	8x8						54.05	31200	6.7
AL1022	2x2	1-1/4"	31.75	24.8	3.9	9.52	20.8	12000	2.36
AL1044	4x4						37.2	24000	4.63
AL1066	6x6						53.6	35000	6.9
ALI088	8x8						70	48000	9.35
AL1222	2x2	1-1/2"	38.10	30	4.7	11.1	24.6	16000	3.4
AL1244	4x4						44.2	32000	6.65
AL1266	6x6						63.8	48000	9.92
AL1444	4x4	1-3/4"	44.45	36.2	5.6	12.7	5130	41000	10.34
AL1466	6x6	1-3/4"	44.45	36.2	5.6	12.7	74.55	62000	15.16
AL1644	4x4	2"	50.8	41.4	6.4	14.28	58.05	55000	12.98
AL 1666	6x6	2"	50.8	41.4	6.4	14.28	84.45	82000	19.41

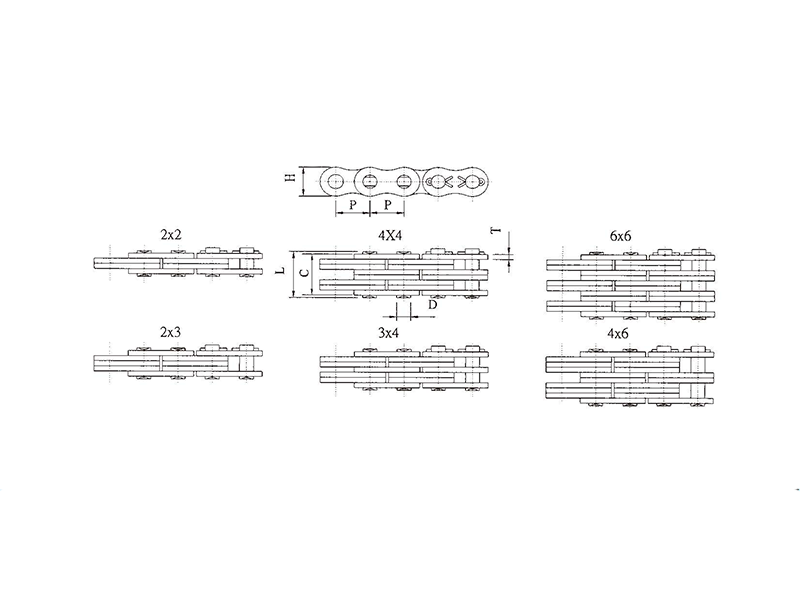

CHC 鏈號	ISO 鏈號	鏈板組合	節距 P		鏈板寬度	鏈板厚度	銷軸外徑	銷軸長度	Average Ultimate Strength kgf	Approx weight kg/m
CHC 鏈號	ISO 鏈號	鏈板組合	inch	mm	H	T	D	L	Average Ultimate Strength kgf	Approx weight kg/m
BL422	LH0822	2x2	1/2"	12.7	12	2	5.06	10.6	2270	0.69
BL423	LH0823	2x3						12.6	3000	0.77
BL434	LH0834	3x4						16.8	4500	1.07
BL444	LH0844	4x4						18.9	4540	1.19
BL446	LH0846	4x6						23.1	5800	1.48
BL466	LH0866	6x6						27.2	6804	1.8
BL523	LH1023	2x3	5/8"	15.875	14.85	2.4	5.95	15.2	4500	1.13
BL534	LH1034	3x4						20.1	6800	1.56
BL544	LHiO44	4x4						22.65	9000	1.78
BL546	LH1046	4x6						27.5	9000	2.22
BL566	LH1066	6x6						32.5	10210	2.74
BL623	LH1223	2x3	3/4"	19.05	17.9	3.15	7.94	19.35	7000	1.82
BL634	LH1234	3x4						25.95	10500	2.52
BL644	LH1244	4x4						29.5	14000	2.87
BL646	LH1246	4x6						36	14000	3.57
BL666	LH1266	6x6						42.35	21000	4.27
BL822	LH1622	2x2	1"	25.4	24	3.9	9.52	20.65	8619	2.3
BL823	LH1623	2x3						24.85	11600	3.15
BL834	LH1634	3x4						33.18	18500	4.37
BL844	LH1644	4x4						37.36	24500	4.98
BL846	LH1646	4x6						45.72	24500	6.2
BL866	LH1666	6x6						54.05	25867	7.5
BL1023	LH2023	2x3	1-1/4"	31.75	30.1	4.7	11.1	29.7	16000	3.85
BL1034	LH2034	3x4						39.5	20000	5.84
BL1044	LH2044	4x4						44.4	25000	7.2
BL1046	LH2046	4x6						54.2	25000	8.24
BL1066	LH2066	6x6						64	36000	10.63
BL1222	LH2422	2x2	1-1/2"	38.10	35	5.6	12.7	28.04	20500	4.83
BL1223	LH2423	2x3						33.9	20500	6.54
BL1234	LH2434	3x4						45.5	30750	9.1
BL1244	LH2444	4x4						51.3	41000	10.39
BL1246	LH2446	4x6						62.95	41000	12.01
BL1266	LH2466	6x6						74.57	61500	14.58
