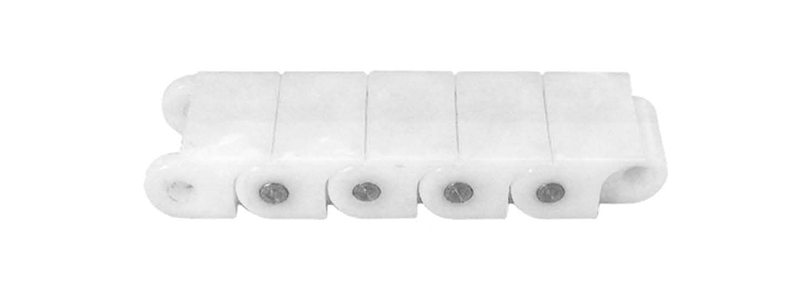

工程塑料鏈節平頂輸送鏈

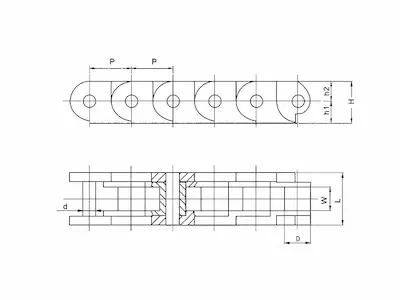

規格
| CHC 鏈號 | P | w min | D max | d max | L | H | Hi | H2 | 工作 載荷 |
| mm | mm | mm | mm | mm | mm | mm | mm | max | |
| 40P | 12.7 | 7.95 | 7.94 | 4 | 20 | 12.7 | 6 | 6.7 | 45 |
| 60P | 19.05 | 12.7 | 11.91 | 6 | 30 | 17.3 | 8.5 | 8.8 | 90 |
- 工程塑料鏈節平頂鏈輸送鏈鏈節使用特殊的工程塑料制造而成，其銷軸采用不銹鋼制造具有噪音低，重量輕無磁性，抗静電等優點，適用於-20匕~80匕之工作環境，被廣泛用於化工:藥品的制造設備上。
- Plastic flat-top chain conveyor chain links section uses the special engineering plasticsmade of, its pin made of stainless steel, with low noise, light weight, non-magnetic, anti-static, etc., suitable for -20 °C ~ 80 °C of work environment, is widely used in the chemicalindustry, pharmaceutical manufacturing equipment.
