不銹鋼頂板鏈
規格
.png)
.png)

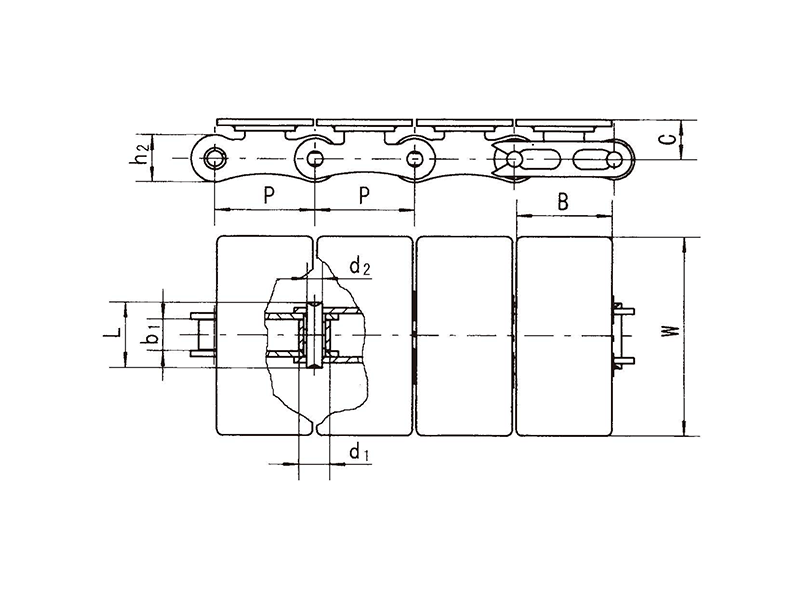

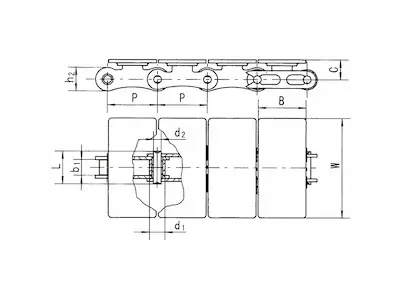

| 鏈號 Chain No. | 節距 Pitch P mm | 滚子 直徑 Roller diameter d1(max) mm | 内鏈板 高度 Inner plate depth h1(max) mm | 内節 内寬 Width between inner plates b1(min) mm | 銷軸 Pin | 極限拉 伸載荷 Ultimate tensile strength Q(min) KN | B mm | C mm | W mm | |
| 直徑 dia d2 mm | 長度 length L mm | |||||||||
| A2060SS-PT | 38.1 | 11.91 | 18 | 12.57 | 5.94 | 23.5 | 14 | 36.5 | 13 | 76 |

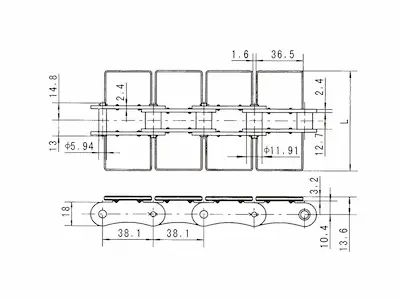

| 鏈號 Chain No. | L (mm) |
| TS550SS-P | 55 |
| TS635SS-P | 63.5 |
| TS762SS-P | 76.2 |
| TS826SS-P | 82.6 |
| TS950SS-P | 95 |
| TS1016SS-P | 101.6 |
| TS1100SS-P | 110 |
| TS1143SS-P | 114.3 |
| TS1270SS-P | 127 |
| TS1524SS-P | 152.4 |
| TS1905SS-P | 190.5 |
