不銹鋼防滑直輸平頂鏈

產品型號： C13S

描述

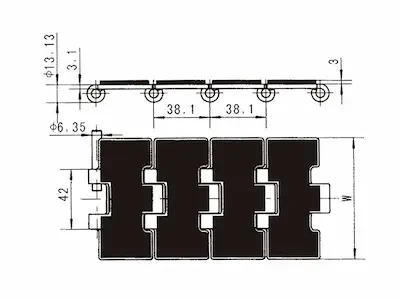

規格A

鏈號 Chain No.	鏈板寬度 plate width W mm	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
鏈號 Chain No.	鏈板寬度 plate width W mm	1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
C12S	76.2	8	6.25	6.2	2.5
C13S	82.6(82)
C14S	88.9
C16S	101.6
C18S	114.3
C20S	127
C24S	152.4
C30S	190.5

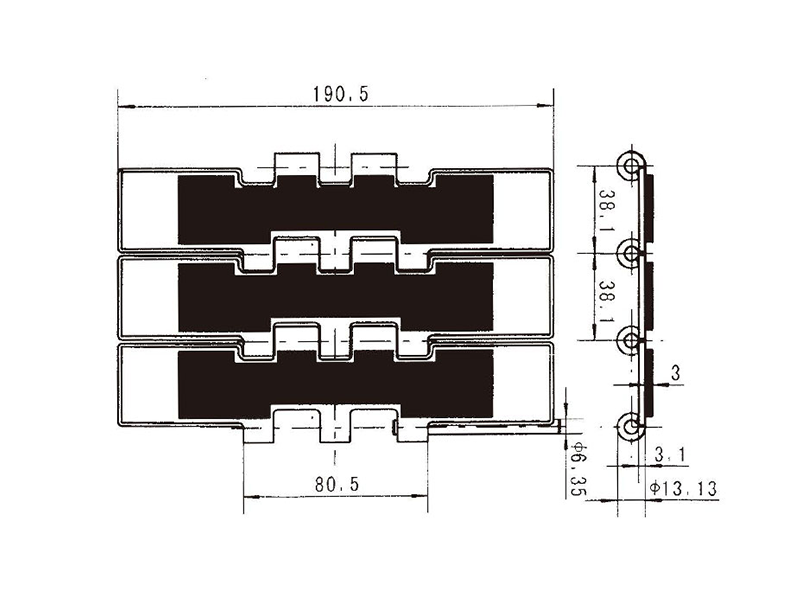

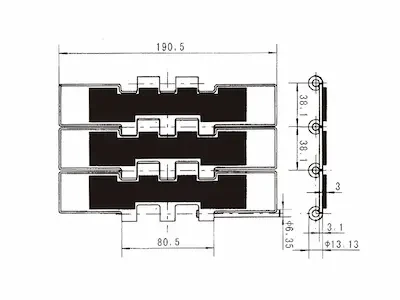

規格B

鏈號 Chain No.	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
鏈號 Chain No.	1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
CC30D	16	12.5	6.4	5
