不銹鋼輸送用平頂鏈

產品型號： C12S

描述

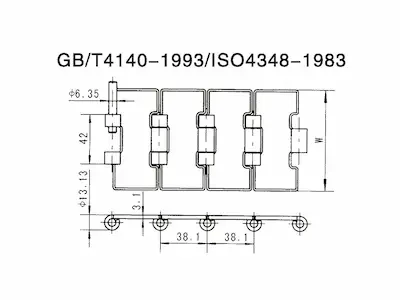

規格A

鏈號 Chain No.	鏈板寬度 plate width W mm	每米净重 Weight per meter q Kg/m	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
鏈號 Chain No.	鏈板寬度 plate width W mm	每米净重 Weight per meter q Kg/m	1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
C12S	76.2	2.39	8	6.25	3.2	2.5
C13S	82.6(82)	2.55
C14S	88.9	2.7
C16S	101.6	2.99
C18S	114.3	3.29
C20S	127	3.59
C24S	152.4	4.17
C30S	190.5	5.06

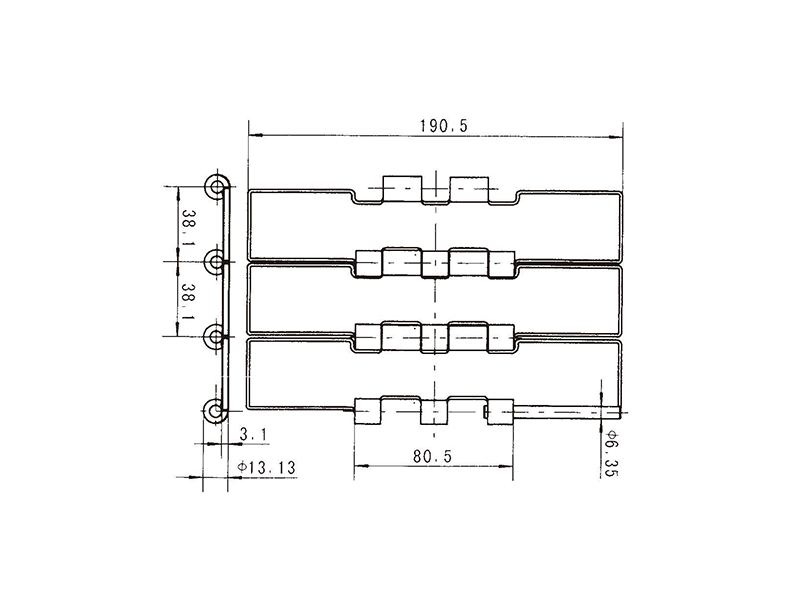

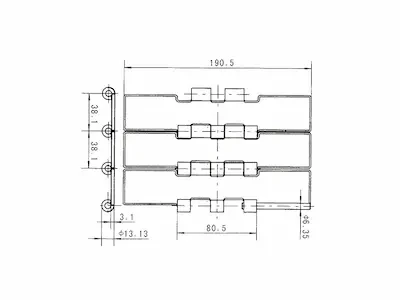

規格B

鏈號 Chain No.	每米淨重 Weight per meter q Kg/m	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
鏈號 Chain No.	每米淨重 Weight per meter q Kg/m	1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
C30D	5.87	16	12.5	6.4	5

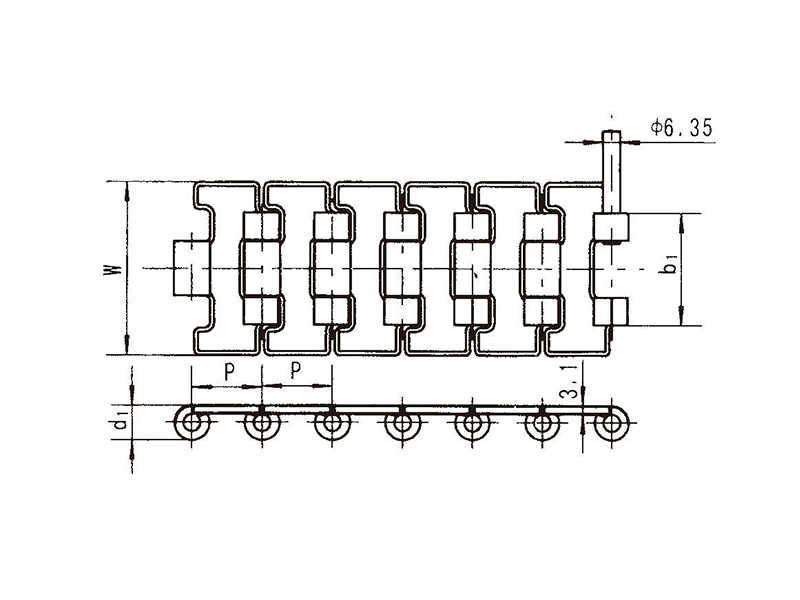

規格C

鏈號 Chain No.	節距 Pitch P mm	鍵板寬度 plate width W mm	鮫卷外徑 Pin dia d1(max) mm	固定鮫卷外跨寬 Width over fixed curls B1 mm	每米净重 Weight per meter q Kg/m	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
						1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
25.4-CS54	25.4	54.5	13.13	42	2.26	8	6.25	3.2	2.5
25.4-CS63		63		40.5	2.55
25.4-CS71		71.5		42	2.79
25.4-CS75		75			2.87
25.4-CS82		82			2.94
25.4-CS88		88			3.08
25.4-CS98		98			3.3
36-CS80	36	80			2.58
36-CS90		90			2.79
38.1-CS53	38.1	53			2.04
38.1-CS65		65			2.32

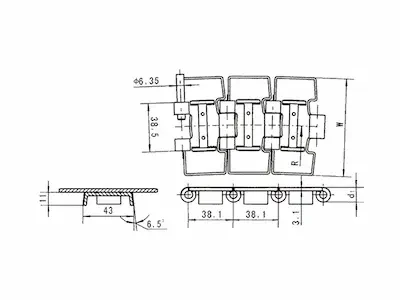

規格D

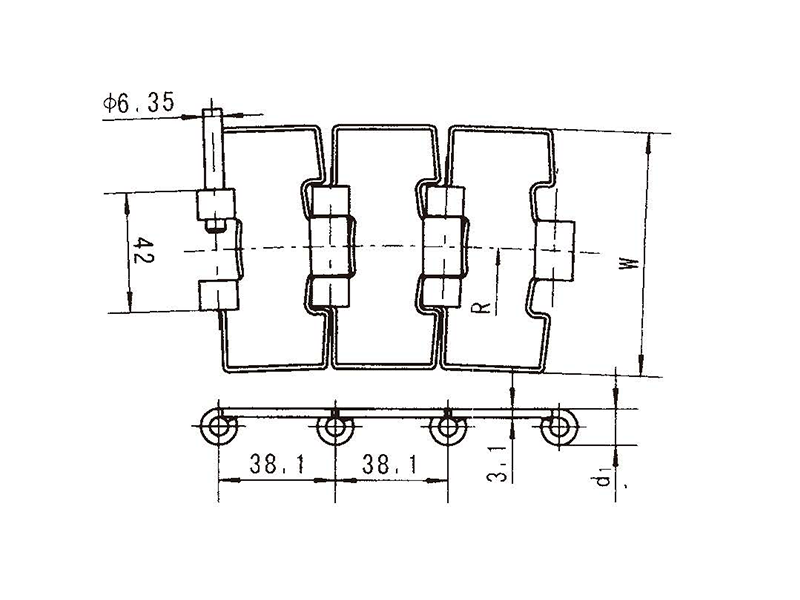

鏈號 Chan No.	鏈板寬度 plate width W mm	每米淨重 Weight per meter q Kg/m	側變半徑 Sideflex Radius R(min) mm	鮫卷外徑 Pin dia d1(max) mm	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
					1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
CC13SA	82.6	2.52	460	13.8	7.2	5.6	2.6	2
CC14SA	88.9	2.67
CC16SA	101.6	2.93
CC18SA	114.3	3.15
CC24SA	152.4	3.96	600
CC30SA	190.5	4.7

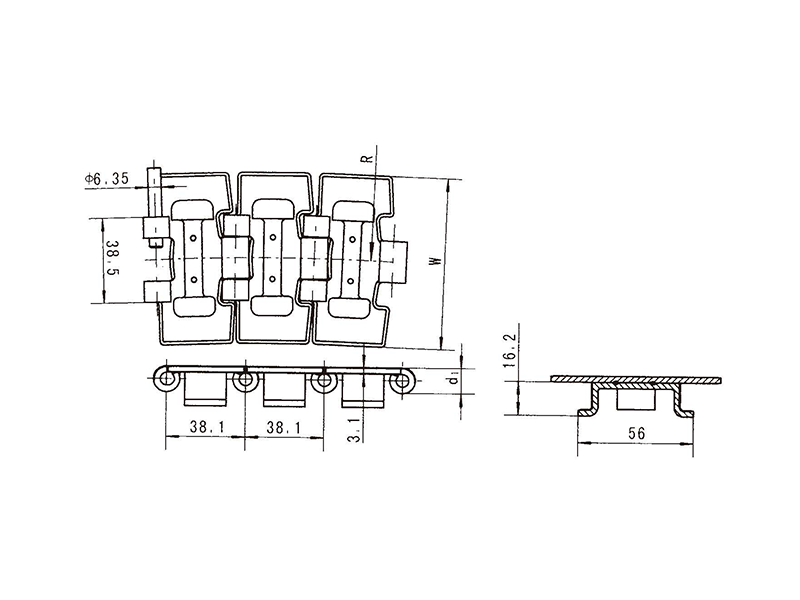

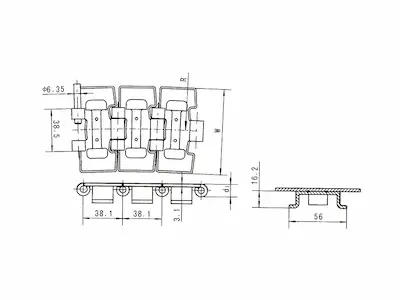

規格E

鏈號 Chain No.	鏈板寬度 plate width W mm	每米淨重 Weight per meter q Kg/m	側彎半徑 Sideflex Radius R(min) mm	鮫卷外徑 Pin dia d1(max) mm	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
					1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
CC13SB	82.6	2.85	460	13.8	7.2	5.6	2.6	2
CC14SB	88.9	3
CC16SB	101.6	3.26
CC18SB	114.3	3.78
CC24SB	152.4	4.31	600
CC30SB	190.5	5.06

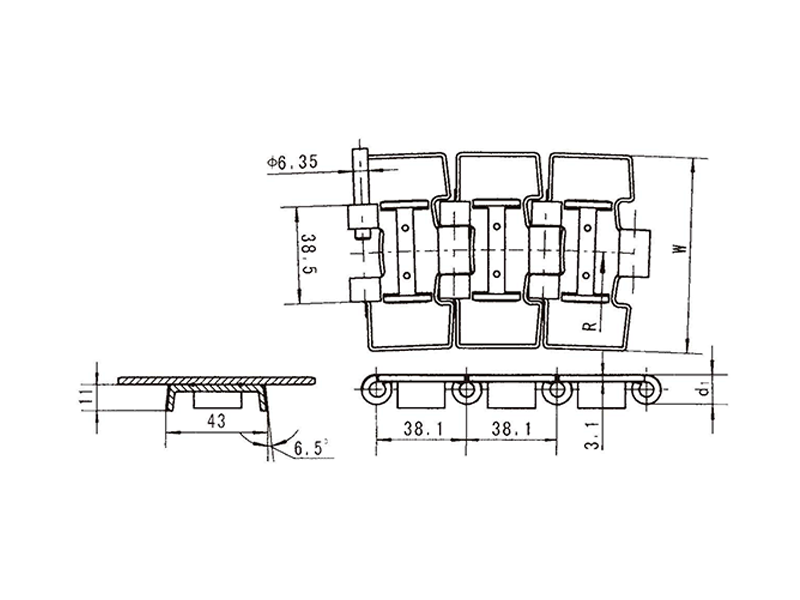

規格F

鏈號 Chain No.	鏈板寬度 plate width W mm	毎米净重 Weight per meter q Kg/m	側彎半徑 Sideflex Radius R(min) mm	鮫卷外徑 Pin dia d1(max) mm	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
					1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
CC13SC	82.6	3.08	460	13.8	7.2	5.6	2.6	2
CC14SC	88.9	3.23
CC16SC	101.6	3.49
CC18SC	114.3	3.6
CC24SC	152.4	4.54	600
CC30SC	190.5	5.29
