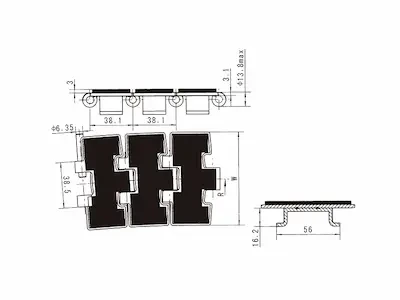

不銹鋼側彎平頂鏈

產品型號： CC13SC

描述

鏈號 Chain No.	鏈板寬度 plate width W mm	側彎半徑Sideflex Radius R(min) mm	極限拉伸載荷 Ultimate tensile strength		許用工作載荷 Rated working load
			1Cr18Ni9 (min) KN	1Cr13 2Cr13 (min) KN	1Cr18Ni9 (max) KN	1Cr13 2Cr13 (max) KN
CC13SC	82.6	460	7.2	5.6	2.6	2
CC18SC	114.3
CC24SC	152.4	600
CC30SC	190.5
